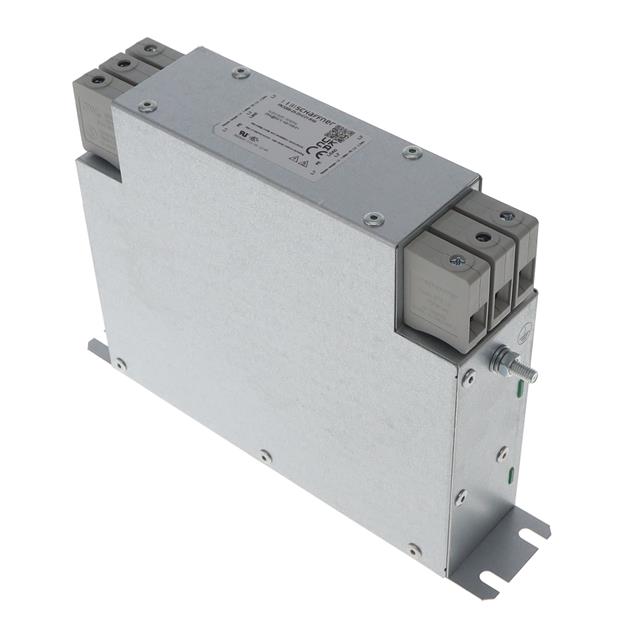

FN3288-25-33-C21-R65

$158.37

Description：LINE FILTER 530V/305VAC 25A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:a38e1879ef23 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 530V/305VAC 25A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：530V, 305V
Current：25 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-25-33-C21-R65

Overview

The Schaffner FN3288-25-33-C21-R65 is a three-phase EMC/RFI power line filter designed for chassis mounting. It features a voltage rating of 530 VAC and a current rating of 25 A, with an operating frequency range of 0 Hz to 60 Hz. The unit utilizes terminal block termination and exhibits a leakage current of 400 µA. Compliance standards include UL 60939-3 and IEC 60939-3.

Feature Summary

Provides electromagnetic interference suppression for three-phase power systems
Engineered for secure chassis mounting applications
Utilizes terminal block connections for electrical interface

Applications

Industrial machinery power conditioning
Three-phase equipment noise reduction
EMC compliance integration in power distribution

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm exact ratings. Ensure compatibility with system voltage and current requirements before procurement. Confirm regulatory compliance needs match the component's certification status.

Selection Notes

Select this component for applications requiring robust three-phase filtering with chassis mount capabilities. Evaluate thermal management requirements based on the rated current. Verify that terminal block termination aligns with existing wiring infrastructure and installation constraints.

Part Context

This component belongs to the FN3288 series of power line filters manufactured by TE Connectivity / Schaffner. The series is characterized by high-current handling and standardized mounting configurations suitable for industrial environments.
