Product Detailed Parameters
- Description：LINE FILTER 530V/305VAC 40A CHAS
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：530V, 305V
- Current：40 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：305 V
- Voltage - Rated AC (Phase to Phase)：530 V
Download product information
Overview

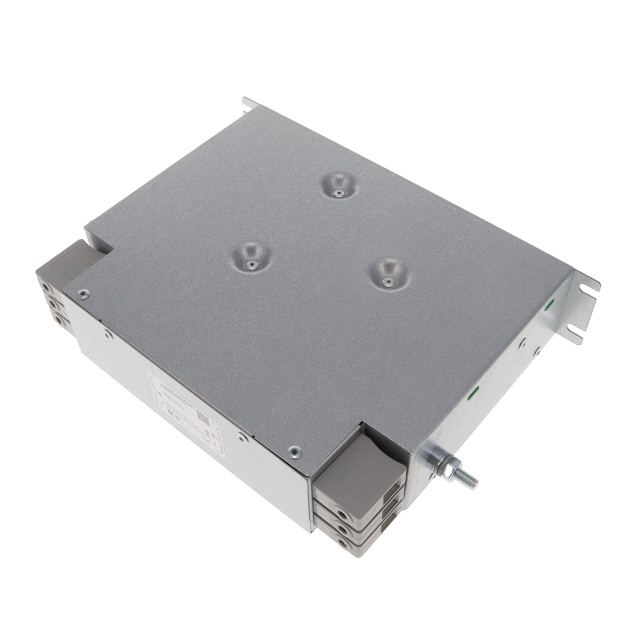

The FN3288-40-33-C17-R65 is a three-phase EMC/RFI power line filter manufactured by Schaffner EMC Inc. It features a rated voltage of 530 VAC and a continuous current rating of 40 A. The unit utilizes terminal block termination for secure electrical connections and is designed for chassis mounting. Operating within a frequency range of 0 Hz to 60 Hz, the filter supports a maximum operating temperature of +100°C and a minimum of -40°C. It complies with UL 60939-3 and IEC 60939-3 standards.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Engineered for high-performance noise attenuation in industrial environments
- Constructed for robust chassis mounting applications
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Power electronics equipment requiring EMI reduction
Procurement Notes
Verify the complete part number including suffixes against official manufacturer documentation to ensure correct configuration. Confirm that the specific terminal block type and mounting hardware requirements match the installation environment. Cross-reference compliance certifications such as UL and IEC with local regulatory standards before procurement.
Selection Notes
Select this component based on the requirement for a 40 A three-phase filter with 530 VAC capability. Ensure the chassis mounting style and terminal block termination are compatible with the system design. Verify thermal management requirements align with the specified operating temperature range of -40°C to +100°C.
Part Context
This model belongs to the FN3288 series of power line filters from Schaffner EMC Inc. The series is characterized by slim book-style construction designed for high performance in space-constrained applications. These filters are engineered to meet stringent international EMC standards for industrial power distribution systems.
