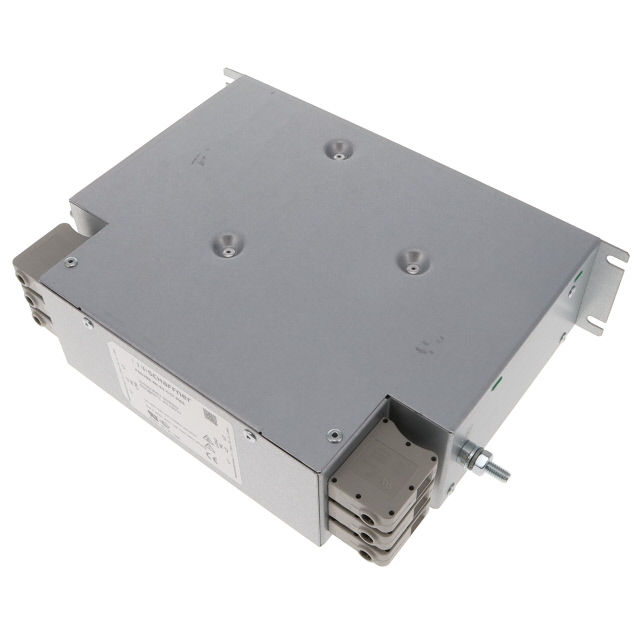

FN3288-50-53-C17-R65

$232.75

Description：LINE FILTER 530V/305VAC 50A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box

SKU:c184418cb0e6 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 530V/305VAC 50A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：530V, 305V
Current：50 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-50-53-C17-R65

Overview

The Schaffner FN3288-50-53-C17-R65 is a three-phase EMC/EMI line filter designed for chassis mounting. It features a rated current of 50 A and operates at frequencies from DC to 60 Hz. The device supports AC voltages of 530 V phase-to-phase and 305 V phase-to-neutral. It utilizes a two-stage filtering configuration with terminal block termination. Key specifications include a maximum leakage current of 4.87 mA and an operating temperature range of -40°C to +100°C.

Feature Summary

Two-stage attenuation architecture for enhanced noise suppression
Chassis mount design with terminal block connections
High thermal stability suitable for demanding industrial environments

Applications

Inverter systems
Power drive systems
Industrial machinery

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct voltage, current, and termination configurations. Confirm compliance requirements such as UL or IEC standards match the target application's regulatory needs. Cross-reference manufacturer part numbers to avoid substitution errors during procurement.

Selection Notes

Select this component when high current capacity and robust two-stage filtering are required for three-phase power lines. Ensure the installation environment accommodates chassis mounting and terminal block wiring. Verify that the 50 A rating aligns with the system's continuous load requirements and that the voltage ratings exceed the network's peak values.

Part Context

This model belongs to the FN3288 series of book-style EMC filters manufactured by TE Connectivity Schaffner. The series is engineered for general-purpose industrial applications requiring reliable noise reduction in three-phase power circuits. It complements other variants in the family by offering specific current and voltage combinations tailored for heavy-duty equipment.
