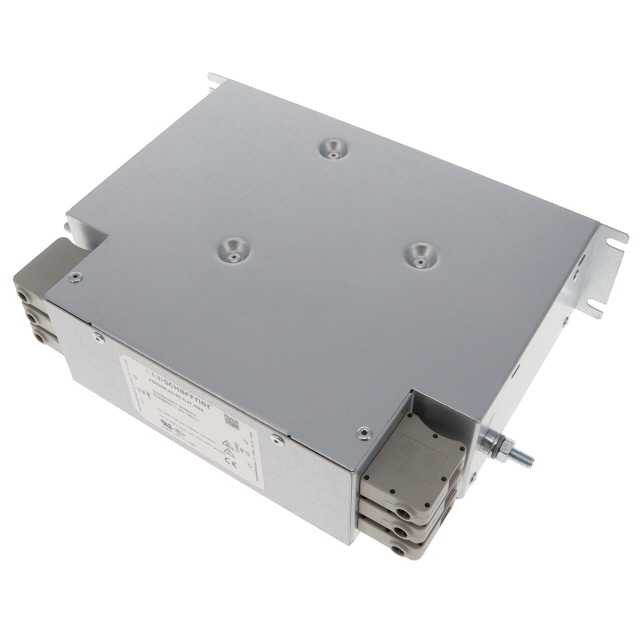

FN3288-63-53-C17-R65

$264.10

Description：LINE FILTER 530V/305VAC 63A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box

SKU:572c3bab140f Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 530V/305VAC 63A CHAS
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：530V, 305V
Current：63 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：305 V
Voltage - Rated AC (Phase to Phase)：530 V

Download product information

FN3288-63-53-C17-R65

Overview

The FN3288-63-53-C17-R65 is a three-phase EMC/RFI power line filter manufactured by Schaffner. It features a chassis mount design with terminal block termination. The unit supports a voltage rating of 530 VAC and operates within a frequency range of 0 Hz to 60 Hz. Key electrical specifications include a current rating of 55 A and a leakage current of 100 uA. Compliance standards include UL 60939-3 and IEC 60939-3.

Feature Summary

Provides electromagnetic interference suppression for three-phase power lines
Utilizes a low leakage current design suitable for sensitive equipment
Constructed for secure chassis mounting applications

Applications

Industrial machinery power conditioning
Three-phase motor drive systems
Medical equipment power supplies

Procurement Notes

Verify the specific current rating designation, as sources indicate variations between 50 A and 55 A for this model number. Confirm compliance requirements against UL 60939-3 and IEC 60939-3 standards prior to integration. Ensure terminal block compatibility matches existing wiring infrastructure.

Selection Notes

Select this component when a three-phase filter with low leakage current is required for chassis-mounted installations. Compare against the FN3288-50-53-C17-R65 if lower current capacity suffices. Verify that the 530 VAC rating aligns with the system's nominal voltage.

Part Context

This part belongs to the Schaffner FN3288 series of three-phase power line filters. The series is designed for industrial environments requiring robust EMI suppression. The product is distributed under TE Connectivity branding.
