Product Detailed Parameters
- Description：LINE FILTER 530V/305VAC 63A CHAS
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：530V, 305V
- Current：63 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：305 V
- Voltage - Rated AC (Phase to Phase)：530 V
Download product information
Overview

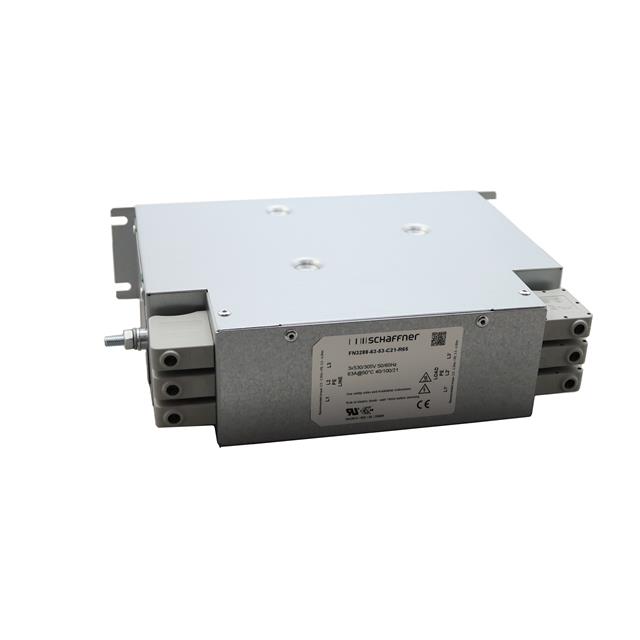

The FN3288-63-53-C21-R65 is a three-phase EMC/RFI power line filter from the Schaffner FN3288 series. It features a voltage rating of 530 VAC and a current rating of 63 A. The unit utilizes chassis mount installation with terminal block termination. Key electrical specifications include a leakage current of 0.4 mA and an operating frequency range of 0 Hz to 60 Hz.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Designed for chassis mounting with secure terminal block connections
- Engineered for low leakage current operation
Applications
- Industrial power distribution units
- Three-phase motor drive systems
- Medical equipment power supplies
Procurement Notes
Verify the specific suffix codes against the manufacturer datasheet to ensure correct terminal configuration and compliance certifications. Confirm that the 530 VAC rating aligns with the target system voltage. Ensure chassis mounting provisions match the physical dimensions specified in the official documentation before procurement.
Selection Notes
Select this component when a three-phase filter with a 63 A continuous current rating is required. The chassis mount style is suitable for panel integration where space efficiency is prioritized. Verify that the low leakage current specification meets safety requirements for sensitive medical or precision electronic applications connected to the filtered power line.
Part Context
This part belongs to the FN3288 series, which offers high-performance EMI filtering for industrial environments. The series is characterized by robust construction and standardized mounting options. It serves as a critical component for ensuring electromagnetic compatibility in heavy-duty AC power applications requiring reliable noise attenuation.
Replacement Considerations
Cross-reference with other FN3288 variants such as FN3288-50-53-C21-R65 for lower current needs. Ensure any substitute maintains the same terminal block interface and chassis footprint to avoid mechanical redesign.
