FN3288-80-34-C17-R65

Overview

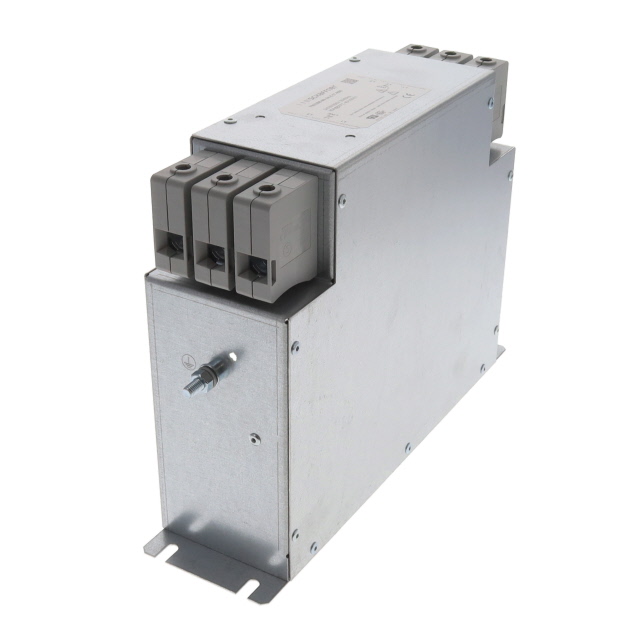

The FN3288-80-34-C17-R65 is a three-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with terminal block termination for both input and output connections. The unit supports a voltage rating of 530 VAC and a current rating of 80 A, operating within a frequency range of 0 Hz to 60 Hz. Physical dimensions are 226 mm in length, 65 mm in width, and 180 mm in height, with a weight of 2.5 kg. It complies with UL 60939-3 and IEC 60939-3 standards.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes terminal block connections for secure electrical interfacing
• Designed for direct chassis mounting in industrial enclosures

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Factory automation equipment filtering

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to ensure compatibility with system requirements. Confirm that the terminal block configuration matches existing wiring infrastructure. Check compliance certifications such as UL and IEC for intended regional deployment. Ensure thermal management provisions align with the specified operating temperature range of -40 C to +100 C during installation planning.

Selection Notes

Select this component when a high-current three-phase filter is required for chassis-mounted applications. The 80 A rating suits heavy-duty industrial loads. Verify that the 530 VAC rating exceeds the maximum system voltage. Consider the physical dimensions and weight for enclosure space allocation. Ensure the terminal block interface is compatible with available cable lugs or busbars.

Part Context

This model belongs to the FN3288 series of power line filters from Schaffner. The series is engineered for robust performance in demanding industrial environments. The FN3288 designation indicates a specific configuration within the broader product family, characterized by its current handling capacity and mounting style. It serves as a critical component for maintaining power quality and reducing conducted emissions in three-phase circuits.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Cross-reference technical specifications including current rating, voltage, and physical dimensions before considering alternative part numbers.
