FN3288HV-230-40-C17-R65

$759.03

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:f541c0cce8c0 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：230 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：440 V
Voltage - Rated AC (Phase to Phase)：760 V

Download product information

FN3288HV-230-40-C17-R65

Overview

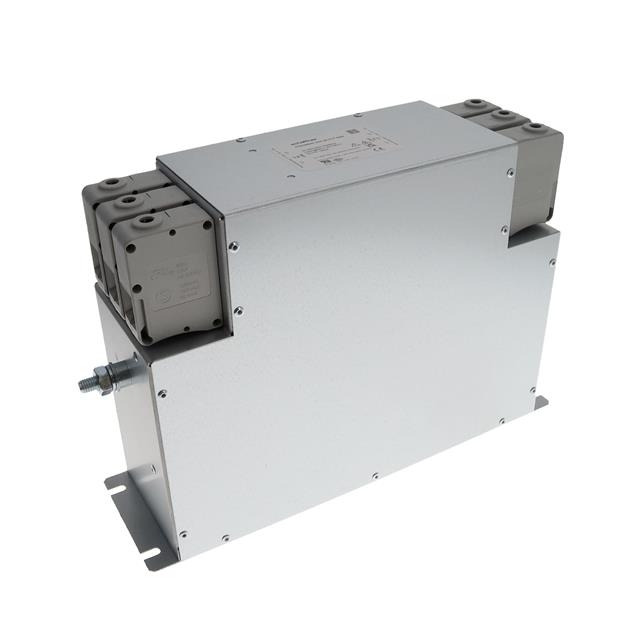

The Schaffner FN3288HV-230-40-C17-R65 is a three-phase EMC/EMI line filter designed for high-voltage industrial applications. It features a rated AC voltage of 760 VAC and supports a continuous current of 230 A at frequencies up to 60 Hz. The unit utilizes a two-stage filtering configuration with terminal block connections and chassis mounting. Operating within a temperature range of -40°C to 100°C, it provides robust electromagnetic interference suppression for demanding power systems.

Feature Summary

High-voltage capability suitable for 760 VAC industrial environments
Two-stage filtering topology for enhanced EMI attenuation
Compact book-style form factor for space-constrained installations

Applications

High-power inverter systems
Industrial motor drive applications
Heavy-duty power conversion equipment

Procurement Notes

Verify the specific part number suffix against official TE Connectivity Schaffner documentation to ensure correct voltage and current ratings. Confirm that the terminal block interface matches your system's wiring requirements. Check for RoHS compliance status and relevant safety certifications required for your target market before finalizing procurement.

Selection Notes

Select this component when high current capacity and elevated voltage ratings are required for three-phase systems. Ensure the chassis mount style fits the available enclosure space. Verify that the terminal block connection method aligns with existing cable management infrastructure and torque specifications.

Part Context

This model belongs to the FN3288HV series, which extends the standard FN3288 line for higher voltage applications. The series is characterized by its thin book-style design, allowing close proximity installation to converters or drives. It represents a specialized solution for heavy industrial power electronics requiring significant filtering performance.

Replacement Considerations

Consult official manufacturer substitution guides for direct replacements. Generic equivalents may not match the specific high-voltage insulation or current handling capabilities. Verify compatibility with existing mounting hardware and terminal configurations before switching.
