Product Detailed Parameters
- Description：LINE FILTER 230A CHASSIS MOUNT
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：230 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：440 V
- Voltage - Rated AC (Phase to Phase)：760 V
Download product information
Overview

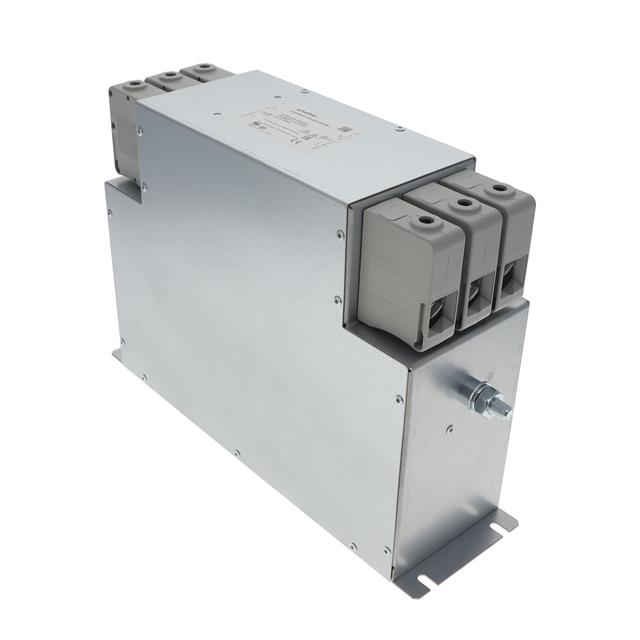

The Schaffner FN3288HV-230-40-C25-R65 is a three-phase EMC filter designed for chassis mounting. It features a rated current of 230 A and a voltage rating of 760 VAC. The component utilizes a slim book-style topology to provide high attenuation performance in power drive systems. Key electrical parameters include a capacitance value associated with the C25 designation and a specific configuration defined by the model suffixes.
Feature Summary
- Three-phase EMC filtering capability for industrial applications
- Chassis mount installation style for secure integration
- Slim book-style design optimized for space-constrained environments
- High current handling capacity suitable for power drive systems
Applications
- Power drive systems
- Industrial machinery requiring EMI suppression
- General-purpose filtering in high-current AC environments
Procurement Notes
Verify the exact datasheet version for the FN3288HV series, as specifications can vary between standard and HV variants. Confirm that the 760 VAC rating aligns with your system's peak voltage requirements. Ensure chassis mounting hardware is compatible with the filter's physical dimensions. Cross-reference the C25 and R65 suffixes with official documentation to confirm internal component values and terminal configurations before finalizing procurement.
Selection Notes
Select this component when high current ratings around 230 A are required for three-phase applications. The slim book-style form factor makes it suitable where panel depth is limited. Verify compatibility with 760 VAC systems. Consider the chassis mount requirement for mechanical stability. Evaluate attenuation needs against the specific frequency range of your noise sources to ensure adequate EMC performance.
Part Context
This part belongs to the FN3288HV series from Schaffner EMC Inc., which focuses on high-performance three-phase filters. The series is characterized by its innovative filter topology and compact design. It is distinct from lower-current models like the FN3288-16, offering significantly higher power handling capabilities for demanding industrial power electronics applications.
Replacement Considerations
Publicly confirmed substitute part numbers for this specific high-current variant are not available in the provided source data. Users should consult official Schaffner selection guides or distributors for equivalent models within the FN3288 or FN351 series that match the 230 A and 760 VAC requirements.
