Product Detailed Parameters
- Description：LINE FILTER 230A CHASSIS MOUNT
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：230 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：440 V
- Voltage - Rated AC (Phase to Phase)：760 V
Download product information
Overview

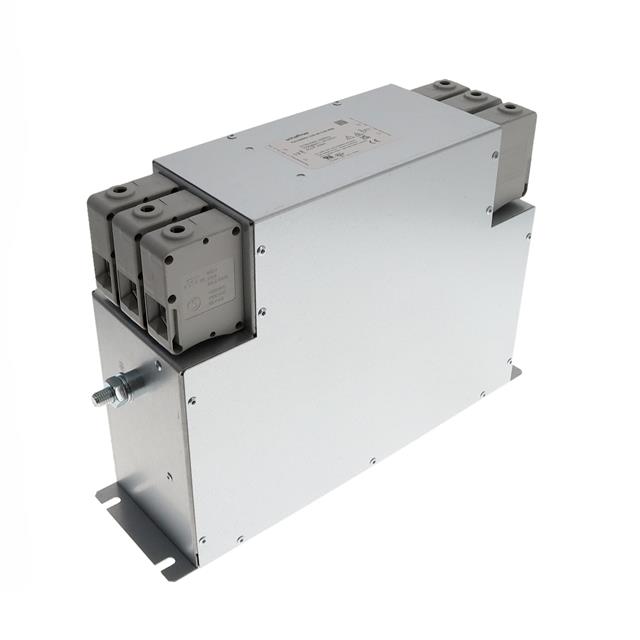

The FN3288HV-230-40-C36-R65 is a three-phase slim book-style EMC/EMI line filter manufactured by Schaffner EMC Inc. It features a high-performance topology designed for robust electromagnetic compatibility in demanding power environments. The unit supports a rated AC voltage of 760 VAC and handles a continuous current of 230 A. Designed for chassis mounting, it utilizes a block termination style suitable for industrial integration. The component operates within a temperature range of -40°C to 100°C and complies with RoHS3 standards, ensuring environmental safety while maintaining structural integrity under high-voltage conditions.
Feature Summary
- Slim book-style form factor enables space-efficient installation near inverters or motor drives
- Innovative filter topology provides superior EMI attenuation performance
- High voltage rating supports demanding industrial power applications
Applications
- Inverter systems
- Power drive systems
- Industrial motor control units
Procurement Notes
Verify the specific suffix codes against official Schaffner documentation to ensure correct terminal configuration and mounting hardware compatibility. Confirm that the 760VAC rating aligns with your system's peak voltage requirements. Check for updated PCN documents regarding design changes or compliance updates before finalizing procurement orders.
Selection Notes
Select this model when high current capacity at elevated voltages is required in constrained physical spaces. The slim profile allows placement close to sensitive electronics without excessive cabling. Ensure the chassis mounting method matches the available panel structure. Validate thermal management capabilities given the 100°C upper operating limit.
Part Context
This component belongs to the FN3288 series, which includes various high-performance three-phase filters. The HV designation indicates high-voltage capability distinct from standard variants. The series is characterized by its book-style construction, offering a balance between high attenuation performance and compact footprint for modern industrial power electronics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing mounting brackets and terminal blocks if considering alternative models from the same manufacturer family.
