Product Detailed Parameters
- Description：LINE FLTR 760VAC 100A CHASS MNT
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：760V
- Current：100 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

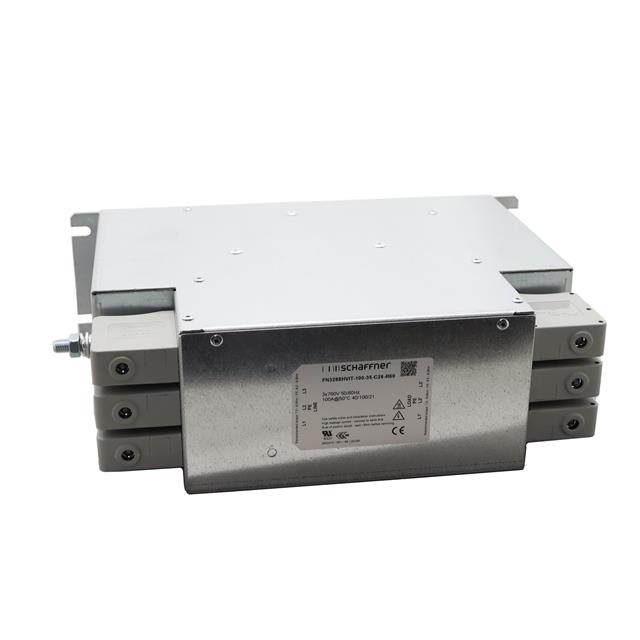

The Schaffner FN3288HVIT-100-35-C26-R60 is a three-phase EMC/EMI line filter designed for high-voltage applications. It supports a rated current of 100 A and operates at frequencies up to 60 Hz. The unit handles phase-to-phase voltages ranging from 305 VAC to 760 VDC. Key electrical specifications include a leakage current of 3.7 mA and a two-stage filtering architecture. The component utilizes terminal block connections for secure wiring and is engineered for robust performance in demanding power electronics environments.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- High voltage capability supporting DC and AC systems
- Terminal block termination for reliable connection integrity
Applications
- Inverter systems
- Power drive systems
Procurement Notes
Verify the specific suffix codes against official Schaffner documentation to ensure correct configuration. Confirm that the 100 A rating and 760 VDC limit align with your system requirements. Check for any recent product lifecycle notifications, as industrial components may undergo discontinuation or revision. Ensure compatibility with existing mounting hardware and terminal specifications before finalizing procurement.
Selection Notes
Select this model when high common-mode attenuation is required for three-phase drives. The low leakage current of 3.7 mA makes it suitable for sensitive control circuits. Consider the physical dimensions and terminal block style during mechanical integration. Verify that the operating temperature range meets the environmental conditions of the installation site.
Part Context
This component belongs to the FN3288HVIT series, which is specialized for high-voltage industrial applications. The series is designed to meet stringent EMC standards for power electronics. It serves as a critical interface between power sources and loads, ensuring signal integrity and regulatory compliance in heavy-duty machinery.
Replacement Considerations
The FN3288-100-35-C26-R65 is listed as a potential replacement for related high-current models in the FN3288 family. Verify technical equivalence regarding voltage ratings and leakage current before substitution.
