Product Detailed Parameters
- Description：LINE FILTER 760VAC 16A CHASS MNT
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：760V
- Current：16 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

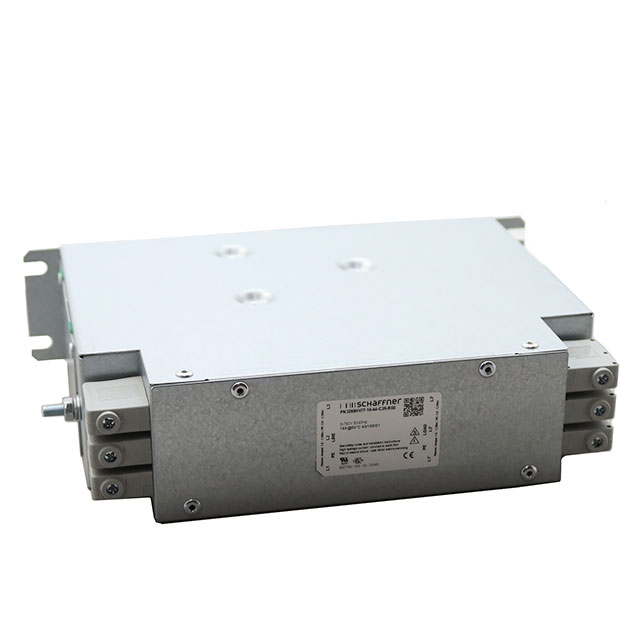

The Schaffner FN3288HVIT-16-44-C26-R60 is a three-phase EMI/EMC line filter module designed for high-voltage industrial applications. It features a rated AC voltage of 760V and a current rating of 16A. The unit utilizes terminal block termination for both input and output connections, supporting a wiring configuration suitable for inverter and power drive systems. Operating within a temperature range of -40°C to 100°C, it provides two-stage filtering to manage differential- and common-mode conducted emissions effectively.
Feature Summary
- Provides two-stage filtering architecture to suppress both differential- and common-mode conducted emissions
- Features a thin book-shaped design enabling space-saving installation near converters or motor drives
- Utilizes terminal block termination style for secure electrical connections
Applications
- Inverters
- Power Drive Systems
- Industrial Motor Drives
Procurement Notes
Verify the specific part number suffix against official Schaffner documentation to confirm exact ratings and certifications. Ensure compatibility with system voltage and current requirements before procurement. Confirm that terminal block termination matches existing panel infrastructure. Check for required regulatory approvals such as CE, ENEC, or UR depending on the target market. Validate operating temperature ranges against environmental conditions.
Selection Notes
Select this component when high-voltage three-phase filtering is required for inverter-driven loads. The 16A current rating and 760V voltage specification define its operational limits. Consider the physical dimensions for mounting proximity to heat-generating components like converters. Evaluate the need for two-stage attenuation capabilities to meet strict emission standards in compact enclosures.
Part Context
This model belongs to the FN3288 series from Schaffner, which employs innovative filter topologies for superior EMI attenuation. The series is characterized by compact form factors intended for integration into modern power electronics. Similar variants in the series offer different current ratings while maintaining consistent termination styles and mounting profiles for standardized system designs.
Replacement Considerations
Direct substitutes include other FN3288 series models with matching current and voltage ratings, such as FN3288HVIT-16-44-C43-R60. Verify that alternative parts maintain identical terminal block configurations and thermal performance characteristics. Cross-reference certification approvals to ensure compliance continuity.
