Product Detailed Parameters
- Description：LINE FLTR 760VAC 160A CHASS MNT
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：760V
- Current：160 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

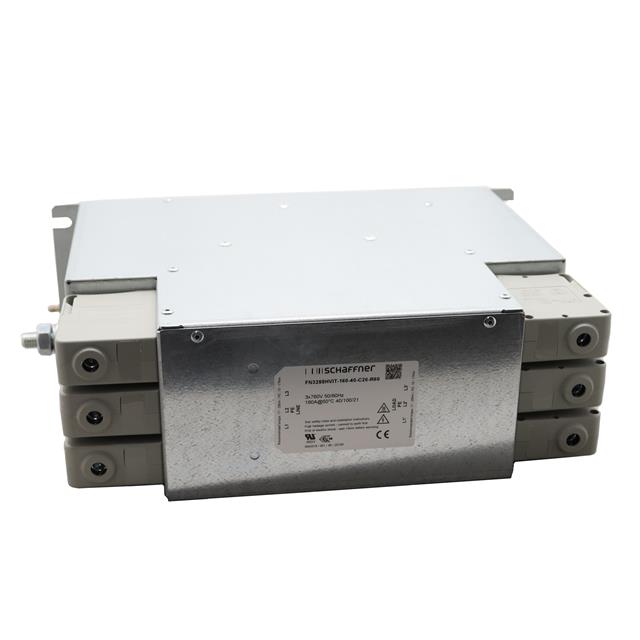

The Schaffner FN3288HVIT-160-40-C26-R60 is a three-phase EMC/RFI power line filter designed for high-voltage industrial applications. It features a rated AC voltage of 760V and a current rating of 160A. The unit utilizes a terminal block termination style for both input and output connections. It operates within a frequency range of 0Hz to 60Hz and employs a two-stage configuration. The device supports Delta wiring configurations (3 wire + ground) and is housed in a bulk package format.
Feature Summary
- Two-stage filtering architecture for enhanced noise attenuation
- High-voltage capability up to 760V AC
- Terminal block termination for secure electrical connections
Applications
- Industrial motor drives
- High-power renewable energy systems
- Heavy machinery power supplies
Procurement Notes
Verify the specific voltage rating requirements against the 760V AC specification before procurement. Confirm that the terminal block termination style matches the existing cabling infrastructure. Ensure the Delta wiring configuration aligns with the system's grounding scheme. Check for any specific environmental operating temperature constraints relative to the -40°C to 100°C range if applicable to other models in the series, though explicit limits for this part number should be confirmed via the official datasheet.
Selection Notes
Select this component when a two-stage EMI filter is required for 760V AC three-phase systems. The 160A current rating dictates suitability for high-load industrial equipment. The terminal block interface necessitates compatible screw terminals or busbar arrangements. Verify that the physical dimensions and mounting requirements fit the designated enclosure space.
Part Context
This model belongs to the FN3288 series by Schaffner EMC Inc., specialized for high-performance electromagnetic compatibility in demanding environments. The HVIT suffix typically denotes high-voltage insulated terminal variants within the lineup. It serves as a critical component for ensuring regulatory compliance in industrial power distribution networks.
Replacement Considerations
Cross-reference with other FN3288HVIT variants for current or voltage adjustments. Ensure substitute parts maintain the two-stage configuration and terminal block termination type to preserve mechanical and electrical compatibility.
