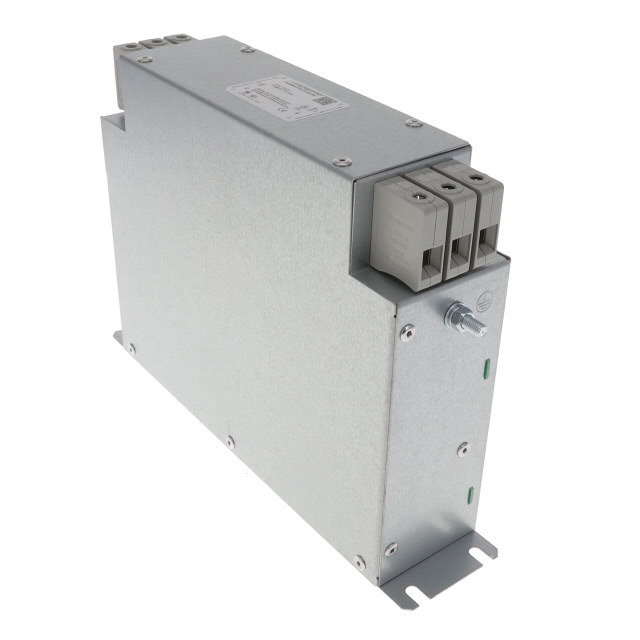

FN3288HVIT-20-33-C26-R60

$169.30

Description：LINE FILTER 760VAC 20A CHASS MNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:abf64497d82c Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 760VAC 20A CHASS MNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：760V
Current：20 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN3288HVIT-20-33-C26-R60

Overview

The Schaffner FN3288HVIT-20-33-C26-R60 is a three-phase EMC power line filter rated for 20 A and 760 VAC. It utilizes terminal block connections for both input and output, supporting Delta (3-wire + ground) configurations. Designed for chassis mounting, the unit operates within a temperature range of -40°C to +100°C. This component belongs to the FN3288 series and is specifically engineered for high-voltage applications involving inverters and power drive systems.

Feature Summary

Provides electromagnetic interference suppression for three-phase power lines
Supports high voltage operation up to 760 VAC
Features terminal block input and output connections
Designed for direct chassis mounting

Applications

Inverter systems
Power drive systems

Procurement Notes

Verify the complete part number including suffixes such as C26 and R60, as these denote specific terminal block types and lead lengths. Confirm that the 760 VAC rating aligns with your system's DC bus or AC line voltage. Ensure chassis mounting hardware is compatible with the specified dimensions. Cross-reference the terminal block configuration against existing wiring diagrams to guarantee correct installation.

Selection Notes

Select this model when a 20 A current rating and 760 VAC insulation are required for three-phase noise reduction. The terminal block interface suits applications requiring secure screw-down connections rather than quick-connect terminals. Consider the operating temperature range if the installation environment exceeds standard ambient limits. Verify space constraints for chassis mounting against the physical footprint of the FN3288 series.

Part Context

This component is part of the Schaffner FN3288 series, which offers various current ratings and voltage options. The HVIT designation indicates high-voltage insulation technology suitable for demanding industrial environments. Similar models in the series include FN3288HVIT-25-33-C26-R60 for higher current requirements and FN3288HVIT-40-33-C26-R60 for even larger loads.
