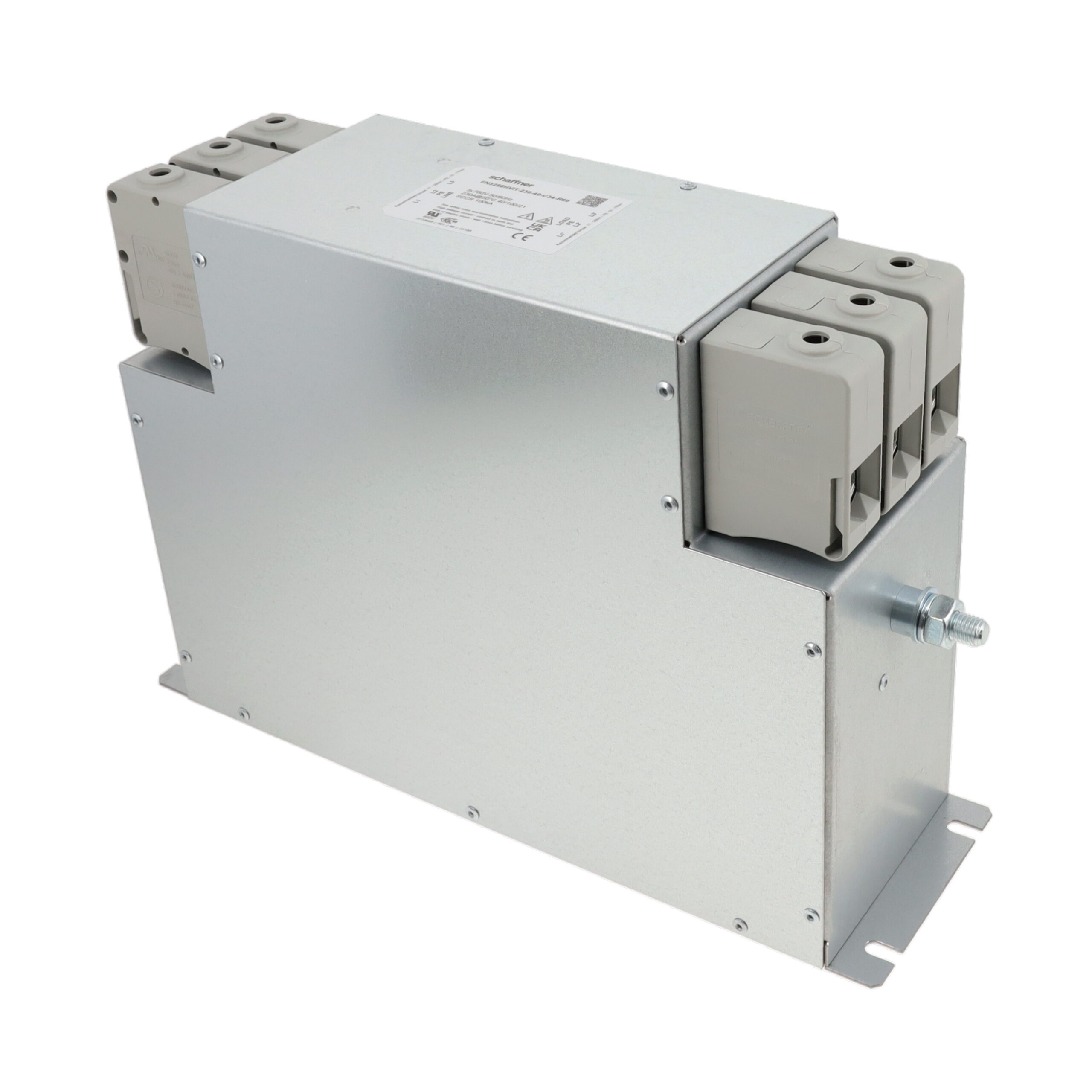

FN3288HVIT-230-40-C34-R60

$756.13

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:e60f8342684a Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 230A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：230 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：760 V

Download product information

FN3288HVIT-230-40-C34-R60

Overview

The Schaffner FN3288HVIT-230-40-C34-R60 is a three-phase EMC/RFI filter designed for inverter and power drive applications. It features a compact book-style housing with chassis mount installation and screw terminal connections. The unit supports a rated voltage of 230 VAC, a current rating of 40 A, and operates at frequencies up to 60 Hz. It functions reliably within a temperature range of -40°C to 100°C.

Feature Summary

Delivers superior attenuation performance from 9 kHz and beyond
Utilizes solid safety connector blocks for secure connections
Designed for space-saving integration in demanding environments

Applications

Inverter systems
Power drive units
Industrial equipment requiring high-performance EMI filtering

Procurement Notes

Verify the specific suffix codes against official Schaffner documentation to ensure correct configuration. Confirm that the C34 designation matches the required capacitance values for your circuit design. Ensure compatibility with the 230V AC input voltage and 40A current rating before procurement.

Selection Notes

Select this model when space constraints require a compact book-style form factor alongside high attenuation capabilities. Ensure the application environment stays within the specified -40°C to 100°C operating temperature range. Verify that the chassis mount style and screw terminals align with the mechanical assembly requirements.

Part Context

This component belongs to the FN3288 series, which offers compact EMC/RFI filtering solutions. The HVIT variant indicates specific high-voltage or insulated terminal characteristics suitable for industrial drives. It complements other Schaffner filters like the FN3288 standard series by providing specialized configurations for inverter applications.

Replacement Considerations

Consult official substitution guides for equivalent models. Verify that any replacement maintains the same 40A rating, 230VAC voltage, and mounting style. Ensure attenuation performance meets the original 9 kHz requirement.
