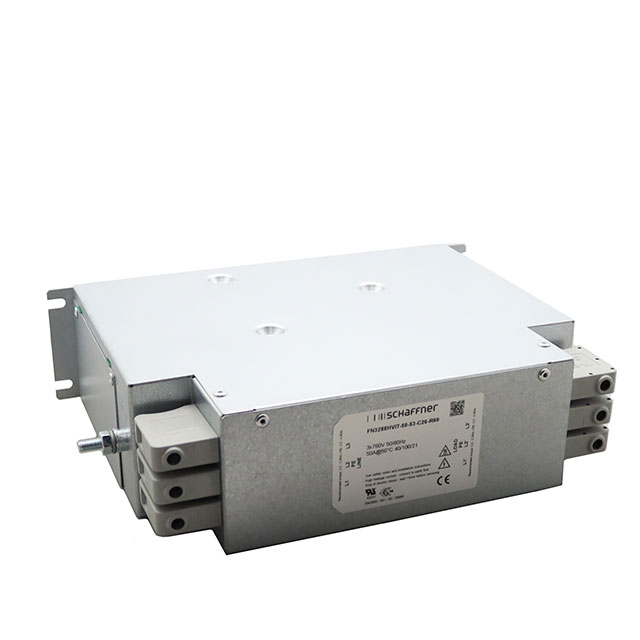

FN3288HVIT-50-53-C26-R60

$270.77

Description：LINE FILTER 760VAC 50A CHASS MNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:1af0eef9258a Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 760VAC 50A CHASS MNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：760V
Current：50 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：CE, ENEC, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN3288HVIT-50-53-C26-R60

Overview

The FN3288HVIT-50-53-C26-R60 is a three-phase slim book-style EMC/RFI line filter manufactured by Schaffner. It operates within a voltage range of 305 to 760 VAC and supports current ratings from 50 to 55 A. The component features a leakage current of 3.7 mA and utilizes STB terminals with a Cy capacitance of 1.5 uF. Designed for high-performance attenuation starting from 9 kHz, it employs an innovative filter topology in a space-saving housing.

Feature Summary

Delivers superior attenuation performance from 9 kHz and beyond
Features solid safety connector blocks for secure installation
Utilizes an innovative filter topology for state-of-the-art EMI suppression

Applications

Inverters
Power Drive Systems
Industrial machinery requiring high-performance EMC filtering

Procurement Notes

Verify the specific part number suffix against official Schaffner documentation to ensure correct terminal type and mounting configuration. Confirm that the rated voltage and current parameters align with the target application's electrical requirements before procurement.

Selection Notes

Select this model for applications requiring compact three-phase filtering with high current capacity. Ensure the operating environment accommodates the specified voltage range and that the slim book-style form factor fits the available enclosure space.

Part Context

This component belongs to the FN3288 series of high-performance IT line filters. The series is characterized by its slim book-style housing and superior attenuation capabilities, making it suitable for demanding industrial electromagnetic compatibility applications.

Replacement Considerations

Consult official Schaffner substitution guides for verified equivalents. Do not assume cross-compatibility with other series without verifying terminal layouts and electrical specifications.
