Product Detailed Parameters
- Description：LINE FILTER 760VAC 63A CHASS MNT
- Series：FN 3288
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：760V
- Current：63 A
- Frequency - Operating：DC ~ 60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：CE, ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

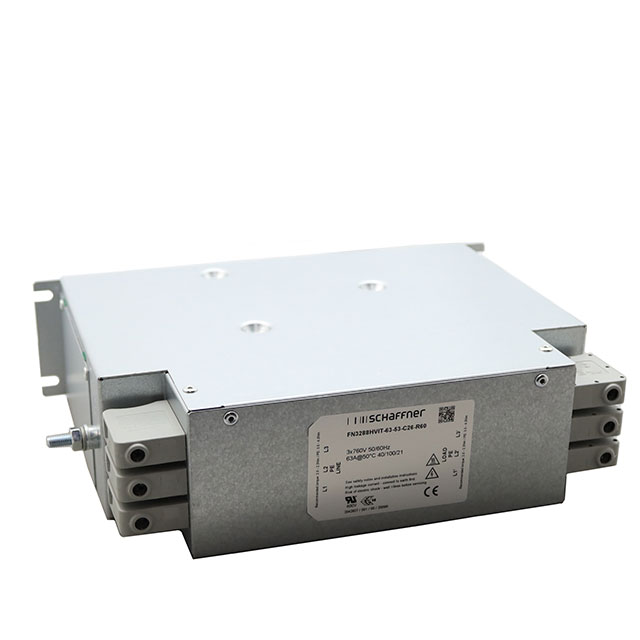

The Schaffner FN3288HVIT-63-53-C26-R60 is a three-phase EMI/RFI power line filter designed for high-voltage industrial applications. It features a rated current of 63 A and operates within a voltage range of 305 to 760 VAC. The unit utilizes terminal block connections for both input and output, supporting Delta (3-wire + ground) configurations. Key electrical specifications include a maximum leakage current of 3.7 mA and a high potential test voltage of 3530 V. The filter is constructed for chassis mounting and complies with IEC and UL safety standards.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Engineered for high-voltage operation up to 760 VAC
- Utilizes robust terminal block termination for secure electrical connections
- Designed for direct chassis mounting in industrial enclosures
Applications
- Industrial motor drive systems
- High-power renewable energy inverters
- Heavy-duty manufacturing equipment
- Medical imaging power supplies
Procurement Notes
Verify the specific voltage rating requirements against the application's nominal AC supply, as this model supports a wide range from 305 to 760 VAC. Confirm that the terminal block interface matches existing wiring infrastructure. Ensure chassis mounting provisions align with the enclosure design. Cross-reference the 63 A current rating with peak load demands to prevent thermal overload. Validate compliance with relevant regional safety certifications such as UL or IEC before integration.
Selection Notes
Select this component when high-voltage three-phase filtering is required for currents up to 63 A. The wide voltage tolerance makes it suitable for various global power standards. Consider the chassis mount style for fixed installations where space efficiency is critical. Evaluate the leakage current specification against sensitive equipment requirements. Ensure the terminal block connection type is compatible with available cabling options.
Part Context
This part belongs to the FN3288 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by high-performance EMC filtering capabilities for demanding industrial environments. The HVIT designation indicates high-voltage insulation technology, distinguishing it from standard low-voltage variants within the same product family.
Replacement Considerations
Direct substitutes may include other models within the FN3288HVIT series with adjusted current ratings, such as FN3288HVIT-40-33-C26-R60 for lower current needs. Verify that any replacement maintains the same terminal block configuration and chassis mounting dimensions to ensure mechanical compatibility without enclosure modifications.
