FN3288IT-230-40-C34-R60

Overview

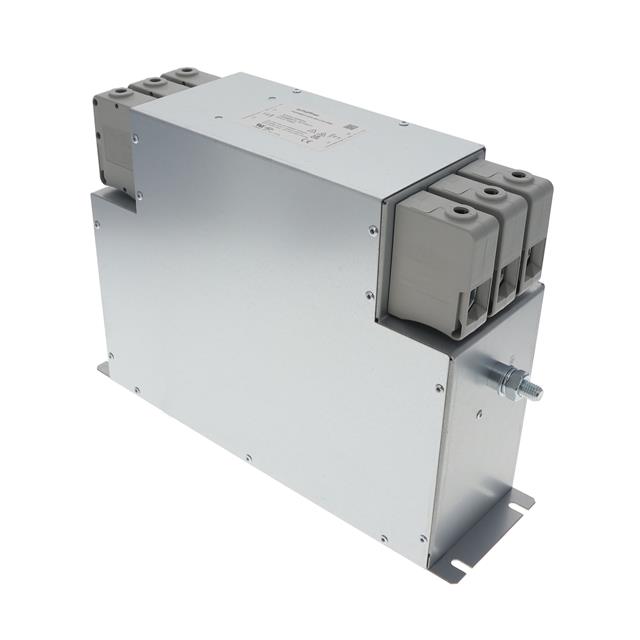

The Schaffner FN3288IT-230-40-C34-R60 is a three-phase (delta) EMC/EMI line filter rated for 230 A at DC to 60 Hz. It features a two-stage configuration with terminal block termination and operates within a temperature range of -40°C to +100°C. Designed in a slim book-style housing, this chassis-mount unit provides superior attenuation performance from 9 kHz and beyond. The component utilizes solid safety connector blocks and is suitable for demanding power applications requiring high current handling and compact form factors.

Feature Summary

• Delivers superior electromagnetic interference attenuation performance starting from 9 kHz
• Utilizes a space-saving slim book-style housing design for efficient chassis mounting
• Equipped with solid safety connector blocks for secure terminal block termination

Applications

• Inverter systems
• Power drive systems

Procurement Notes

Verify the specific part number FN3288IT-230-40-C34-R60 against official TE Connectivity Schaffner documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with system voltage and current requirements before integration. Cross-reference datasheets for precise thermal management needs and mounting specifications to guarantee reliable operation under specified load conditions.

Selection Notes

Select this component when high-current three-phase filtering is required in a compact footprint. The two-stage design offers enhanced noise suppression compared to single-stage alternatives. Verify that the terminal block interface matches existing wiring infrastructure. Consider the operating temperature range and insulation requirements relative to the specific application environment to ensure long-term reliability and compliance with relevant standards.

Part Context

This model belongs to the FN3288 series, which comprises compact high-performance EMC/RFI filters. The series is characterized by its book-style housing and robust construction. These filters are engineered for industrial applications where space constraints and high attenuation levels are critical. The IT suffix typically denotes specific internal configurations or enhancements within the broader FN3288 product family.

Replacement Considerations

Consult official Schaffner substitution guides for verified equivalents. Generic replacements may not match the specific attenuation curves or mechanical tolerances of the original component.
