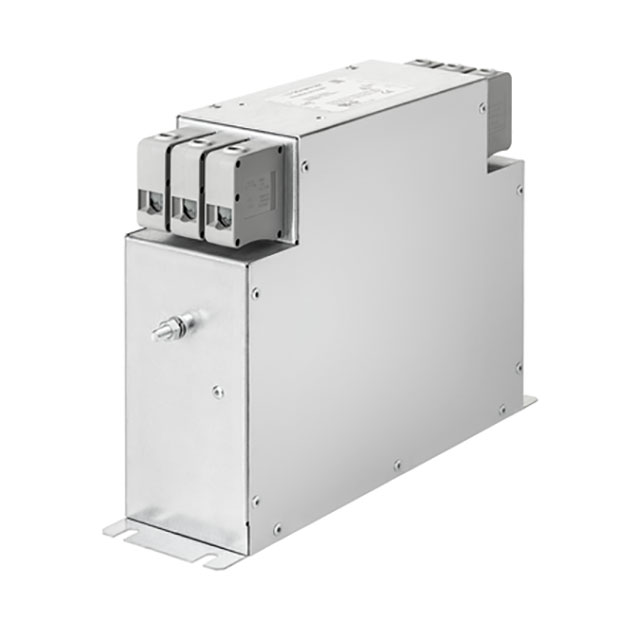

FN3288IT-50-53-C34-R60

$241.03

Description：LINE FILTER 50A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box

SKU:6c462fc72c13 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 50A CHASSIS MOUNT
Series：FN 3288
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：50 A
Frequency - Operating：DC ~ 60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：-
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN3288IT-50-53-C34-R60

Overview

The Schaffner FN3288IT-50-53-C34-R60 is a three-phase EMC/RFI power line filter module designed for industrial applications. It features a rated voltage of 530 VAC and a continuous current rating of 50 A at 60 Hz. The unit utilizes a chassis mount style with terminal block termination. Key electrical specifications include a maximum leakage current of 7 mA and an operating frequency range from 0 Hz to 60 Hz. The component operates within a temperature range of -40°C to 100°C.

Feature Summary

Provides significant attenuation for electromagnetic interference in three-phase systems
Designed for high reliability in demanding industrial environments
Utilizes a slim form factor suitable for space-constrained installations

Applications

Inverters
Power Drive Systems

Procurement Notes

Verify the specific part number against official Schaffner documentation to ensure compatibility with system requirements. Confirm that the 50 A current rating and 530 VAC voltage specifications align with the target application's electrical parameters. Check for any required compliance certifications such as UL or IEC standards relevant to the deployment region before finalizing procurement decisions.

Selection Notes

Select this model when three-phase filtering is required for inverters or drive systems. Ensure the installation environment supports chassis mounting and terminal block connections. Verify that the 50 A current capacity meets the load requirements and that the thermal management allows operation within the specified -40°C to 100°C range without derating issues.

Part Context

This component belongs to the FN3288 series of power line filters manufactured by Schaffner, now part of TE Connectivity. The series is engineered for robust EMC performance in industrial power electronics. The IT suffix typically denotes specific internal construction or terminal variations within the broader product family, distinguishing it from standard FN3288 variants.

Replacement Considerations

Consult official Schaffner substitution guides for verified equivalents. Generic cross-references may not match the specific terminal configuration or internal capacitance values required for proper EMC performance in sensitive drive applications.
