Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：FN 332
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：500µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

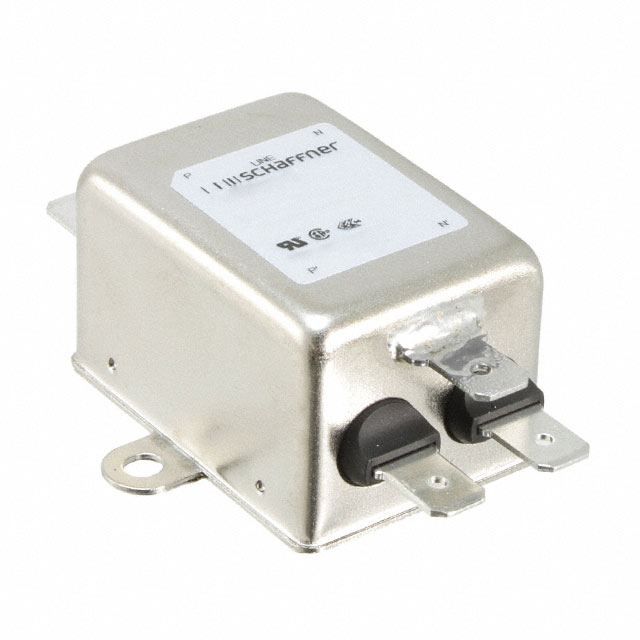

The FN332-10A-05 is a single-phase EMC/EMI power line filter from the Schaffner FN332 series. It features a compact housing design with a current rating of 10 A and a voltage rating of 250 VAC. The unit operates within a frequency range of 0 Hz to 400 Hz and utilizes quick connect (FASTON) terminals for input and output connections. Designed for chassis mounting, this single-stage filter provides general-purpose attenuation performance based on chokes with high saturation resistance.
Feature Summary
- Compact housing construction designed for space-constrained installations
- Single-stage filtering utilizing chokes with high saturation resistance
- Quick connect termination type for simplified circuit integration
Applications
- General purpose electronic equipment requiring EMI suppression
- Chassis-mounted industrial control systems
- Power supply input stages for single-phase AC applications
Procurement Notes
Verify that the required current rating of 10 A aligns with the specific application load requirements. Confirm that the 250 VAC voltage rating is sufficient for the operating environment. Ensure that the quick connect terminal style matches the mating connectors on the PCB or wiring harness. Check that the chassis mounting configuration fits the available enclosure space.
Selection Notes
Select this component when a single-phase filter with a 10 A rating is required for frequencies up to 400 Hz. Consider the compact form factor if panel space is limited. Ensure the installation method supports chassis mounting. Verify compatibility with the system's voltage specifications before procurement.
Part Context
This component belongs to the Schaffner FN332 series of single-phase filters. The series is characterized by its compact housing and use of high-saturation resistance chokes to deliver effective attenuation. The FN332-10A-05 variant specifically denotes the 10 A current rating and quick connect termination style within this product family.
Replacement Considerations
Cross-reference with other parts in the FN332 series for different current ratings. Verify that any substitute maintains the same 10 A rating, 250 VAC capability, and quick connect terminal interface to ensure mechanical and electrical compatibility.
