FN332Z-10-05

Overview

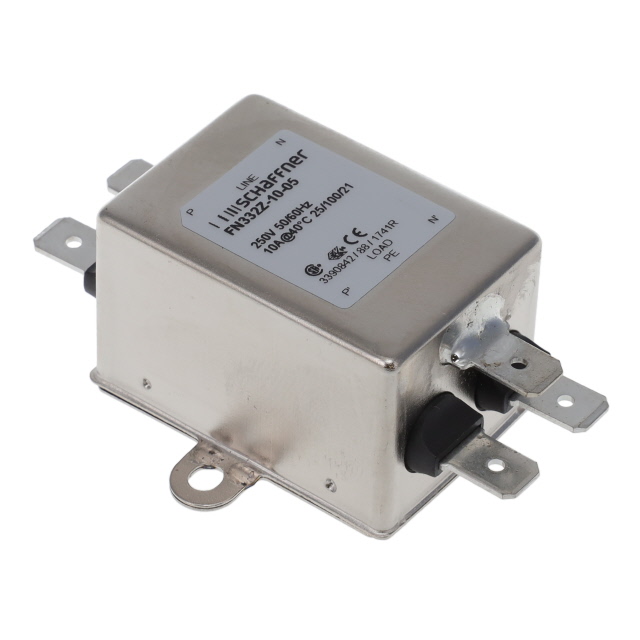

The Schaffner FN332Z-10-05 is a single-phase EMI/RFI power line filter designed for chassis mounting. It features a compact housing and Faston termination style for input and output connections. The component operates within a frequency range of 0 Hz to 400 Hz and supports a voltage rating of 250 VAC. It has a current rating of 10 A and a leakage current of 340 uA. This filter belongs to the FN332 series and provides standard performance EMC filtering.

Feature Summary

• Single-stage electromagnetic interference suppression for single-phase applications
• Compact housing design suitable for space-constrained chassis installations
• Faston terminal post termination for straightforward circuit board or wire connections

Applications

• Industrial control systems requiring EMI suppression
• Medical equipment power inputs
• Information technology hardware power supplies

Procurement Notes

Verify the specific part number suffix against official TE Connectivity/Schaffner documentation to ensure correct termination type and voltage rating. Confirm compliance certifications such as UL, CSA, and IEC/EN are required for the target market. Check datasheet specifications for leakage current limits and operating temperature ranges before integration into final assemblies.

Selection Notes

Select this model when a single-phase filter with a 10 A current rating is needed for frequencies up to 400 Hz. Ensure the application requires Faston terminations rather than screw terminals or PCB pins. Consider the compact form factor if panel space is limited. Verify that the 340 uA leakage current meets safety standards for the specific end-use equipment.

Part Context

This component is part of the Schaffner FN332 series, which offers standard performance EMI filtering solutions. The series includes various current ratings and configurations tailored for different power line requirements. The FN332Z variant specifically denotes the Faston termination style within this product family.

Replacement Considerations

Direct substitutes include other FN332 series models with identical electrical ratings but different termination styles or current capacities, such as FN332-10A-05. Cross-reference technical drawings and pinouts to ensure mechanical compatibility during replacement.
