Product Detailed Parameters
- Description：LINE FILTER 1KA CHASSIS MOUNT
- Series：FN 3359
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：1 kA
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

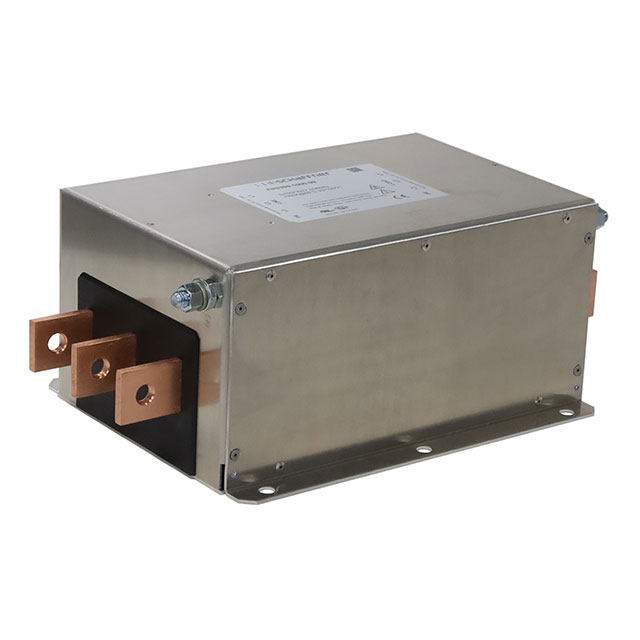

The FN3359-1000-99 is a three-phase EMC/EMI power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount installation style with busbar termination. The unit has a voltage rating of 520 VAC and a current rating of 1000 A. Leakage current is specified at 5.1 mA. Operating frequency ranges from 0 Hz to 60 Hz. Dimensions are 386 mm length, 260 mm width, and 115 mm height. Weight is 8.571 kg. Compliance includes UL, CSA, and IEC/EN standards.
Feature Summary
- Three-stage filtering architecture for high-current applications
- Busbar termination for robust electrical connections
- Chassis mount design for industrial integration
Applications
- Industrial motor drives
- Power conversion systems
- Heavy machinery control panels
Procurement Notes
Verify the specific current rating requirement against the datasheet, as the model number indicates 1000A but some sources list higher variants. Confirm busbar termination compatibility with existing panel layouts. Check for shipping restrictions due to weight. Ensure compliance with local safety standards such as UL or IEC before final procurement.
Selection Notes
Select this component when high continuous current handling is required in a three-phase system. The busbar interface necessitates compatible mounting hardware. Consider the physical dimensions and weight for enclosure space and structural support. Verify that the leakage current specification meets system safety limits. Compare against lower current models if load requirements are reduced.
Part Context
This part belongs to the FN3359 series of three-phase power line filters. The series is designed for high-current industrial environments. Other models in the series include different current ratings such as 400A and 2500A. The manufacturer is TE Connectivity / Schaffner. The product is classified under Power Line Filters.
Replacement Considerations
FN3359-400-99 offers similar form factor with lower current capacity. FN3359-2500-99 provides higher current handling with larger dimensions. Verify mechanical fit and electrical specifications before substitution.
