Product Detailed Parameters
- Description：LINE FILTER 150A CHASSIS MOUNT
- Series：FN 3359
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：150 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

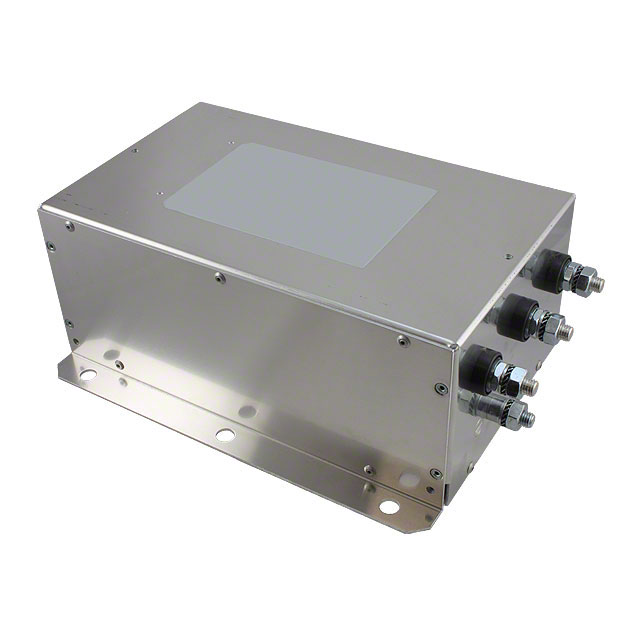

The FN3359-150-28 is a three-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with terminal block termination. The unit supports a voltage rating of 520 VAC and a current rating of 150 A at an operating frequency of 0 Hz to 60 Hz. Physical dimensions are 370 mm in length, 200 mm in width, and 120 mm in height, with a weight of 6.5 kg. It operates within a temperature range of -25°C to +100°C and has a leakage current of 5.1 mA.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Utilizes a robust chassis mount construction for secure installation
- Employs terminal block connections for reliable electrical interfacing
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Heavy-duty manufacturing equipment
Procurement Notes
Verify the specific part number FN3359-150-28 against official TE Connectivity or Schaffner documentation to confirm compatibility with your system requirements. Ensure that the 150 A current rating and 520 VAC voltage specifications align with your operational parameters before procurement. Confirm terminal block type and chassis mounting dimensions match your enclosure design.
Selection Notes
Select this component when high-current three-phase filtering is required for industrial applications. Consider the physical dimensions and weight for adequate space allocation in control panels. Verify that the terminal block connection method suits your wiring infrastructure and that the operating temperature range meets environmental conditions.
Part Context
This component belongs to the FN3359 series of power line filters designed for demanding industrial environments. The series offers various current ratings to accommodate different power levels while maintaining consistent form factors where applicable. It is engineered to meet international safety and EMC standards for global deployment.
Replacement Considerations
Consult official manufacturer substitution guides for verified alternatives. Cross-referencing with similar series components requires careful evaluation of current ratings, voltage limits, and physical mounting constraints to ensure functional equivalence.
