FN3359-1600-99

Overview

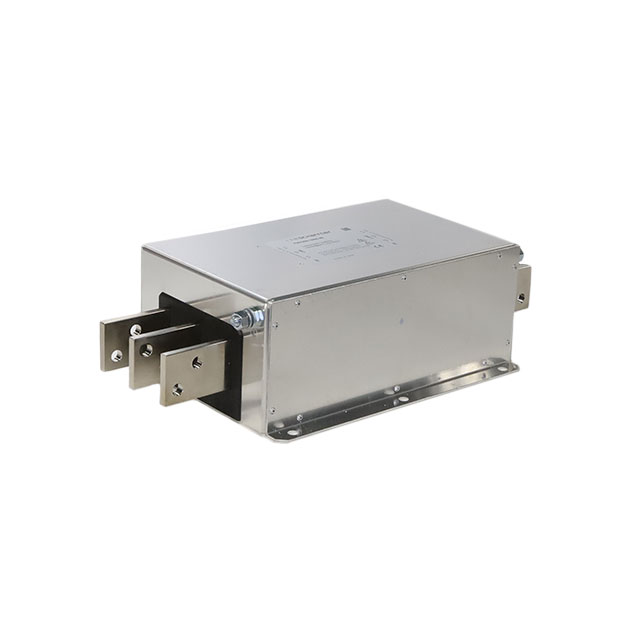

The FN3359-1600-99 is a three-phase power line filter from the Schaffner FN3359 series, rated for 1.6 kA current and 520 VAC voltage. It features busbar termination and chassis mount installation. The unit measures 586 mm in length, 300 mm in width, and 160 mm in height, weighing 27 kg. It operates within a temperature range of -25°C to +100°C and has a leakage current of 5.1 mA.

Feature Summary

• Designed as an off-the-shelf high-power filter solution for demanding industrial applications
• Utilizes busbar termination style for robust electrical connections
• Constructed for chassis mounting to ensure secure physical integration

Applications

• High current industrial power conditioning systems
• Three-phase equipment requiring significant electromagnetic interference suppression
• Heavy-duty machinery with high amperage input requirements

Procurement Notes

Verify the specific part number FN3359-1600-99 against official TE Connectivity / Schaffner documentation to confirm compatibility with your system's voltage and current specifications. Ensure that the chassis mounting dimensions and busbar termination style align with your existing infrastructure before procurement.

Selection Notes

Select this component when a three-phase filter capable of handling 1.6 kA is required. Confirm that the 520 VAC rating and 586 x 300 x 160 mm physical footprint fit the designated enclosure space. Verify that the busbar connection method is compatible with the available power distribution hardware.

Part Context

This component belongs to the FN3359 series of power line filters manufactured by TE Connectivity / Schaffner. The series includes various current ratings ranging from 150 A to 2500 A, offering standardized high-power filtering solutions for three-phase networks.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific 1.6 kA rating or busbar termination requirements.
