Product Detailed Parameters
- Description：LINE FILTER 1KA CHASSIS MOUNT
- Series：FN 3359
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：1 kA
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：400 V
- Voltage - Rated AC (Phase to Phase)：690 V
Download product information
Overview

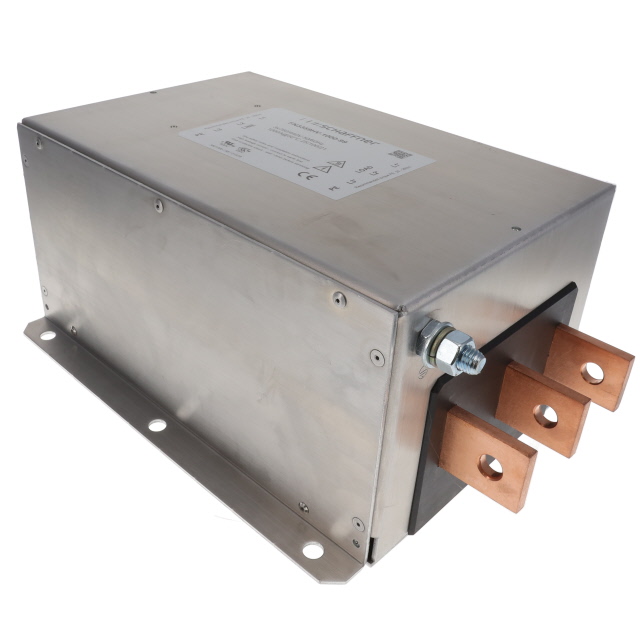

The FN3359HV-1000-99 is a three-phase EMC/EMI line filter manufactured by Schaffner EMC Inc. It features a voltage rating of 690 VAC and a current rating of 1000 A. The unit utilizes busbar termination and chassis mount installation. Key electrical parameters include a leakage current of 7.5 mA and an operating frequency range of 0 Hz to 60 Hz. Physical dimensions are 456 mm in length, 280 mm in width, and 170 mm in height, with a weight of approximately 18 kg. It operates within a temperature range of -25°C to +100°C.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Designed for high-current industrial applications up to 1000 A
- Utilizes robust busbar connections for secure power interface
Applications
- Industrial motor drives
- Large-scale manufacturing equipment
- Power conditioning systems
Procurement Notes
Verify the specific part number against official Schaffner documentation to confirm compatibility with your system requirements. Ensure that the physical dimensions and mounting style align with your chassis design constraints. Confirm that the voltage and current ratings meet the operational demands of your application before finalizing procurement.
Selection Notes
Select this model when a three-phase filter capable of handling 1000 A at 690 VAC is required. Consider the busbar termination type for integration into existing power distribution architectures. Evaluate the physical size and weight to ensure adequate space and structural support within the installation environment.
Part Context
This component belongs to the FN3359 series of power line filters from Schaffner. The series is engineered for demanding industrial environments requiring effective noise reduction. The HV designation typically indicates suitability for higher voltage applications within the three-phase spectrum.
Replacement Considerations
Consult official Schaffner cross-reference guides for verified substitutes. Ensure any replacement maintains identical current, voltage, and dimensional specifications.
