Product Detailed Parameters
- Description：LINE FILTER 150A CHASSIS MOUNT
- Series：FN 3359
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：150 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：400 V
- Voltage - Rated AC (Phase to Phase)：690 V
Download product information
Overview

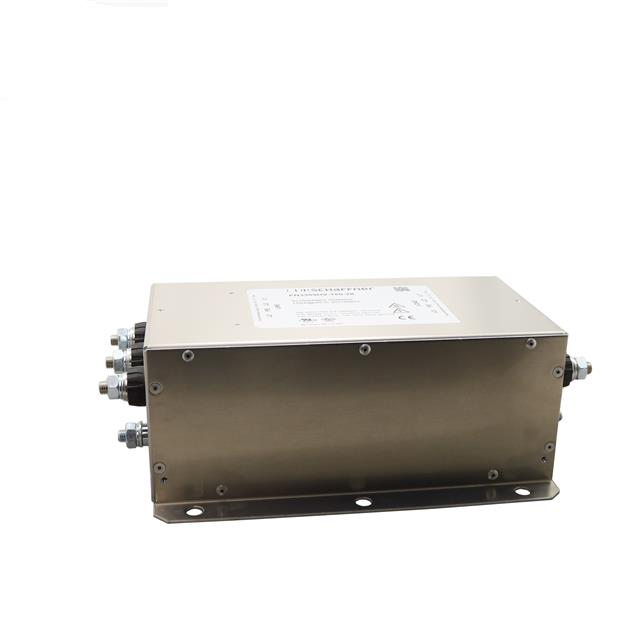

The FN3359HV-150-28 is a three-phase EMC/RFI power line filter manufactured by Schaffner EMC Inc. It features a high current rating of 150 A and a voltage rating of 520 VAC, suitable for frequencies from 0 Hz to 60 Hz. The unit employs a chassis mount style with terminal block termination. Key electrical parameters include a leakage current of 5.1 mA. Physical dimensions are 370 mm in length, 200 mm in width, and 120 mm in height, with an operating temperature range of -25°C to +100°C. The component weighs 6.5 kg and holds UL, CSA, and IEC/EN compliance certifications.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Designed for high-current applications up to 150 amperes
- Utilizes a robust chassis mount construction for secure installation
Applications
- Industrial motor drive systems
- High-power renewable energy inverters
- Large-scale industrial machinery power conditioning
Procurement Notes
Verify the specific suffix HV against official datasheets to confirm high-voltage variant specifications. Ensure terminal block compatibility matches existing wiring infrastructure. Confirm regulatory compliance requirements such as UL or CSA align with target market regulations before procurement.
Selection Notes
Select this model for applications requiring significant current handling capacity in three-phase configurations. Evaluate thermal management needs given the 100°C maximum operating temperature. Consider physical space constraints due to the substantial chassis-mounted footprint and weight.
Part Context
This component belongs to the FN3359 series of power line filters, designed for demanding industrial environments. It addresses EMI/RFI noise generated by high-power electronic loads, ensuring grid stability and equipment protection within complex electrical networks.
Replacement Considerations
Cross-reference part number 801016-SF as an alias. Verify dimensional and electrical equivalence when substituting with other Schaffner FN3359 variants.
