FN3359HV-1600-99

Overview

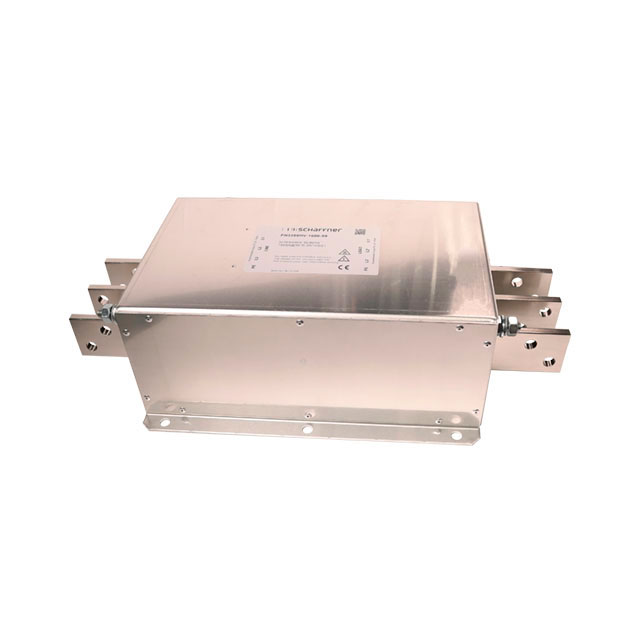

The FN3359HV-1600-99 is a three-phase EMC/RFI power line filter from the Schaffner FN3359 series, manufactured by TE Connectivity. Designed for high-current applications in IT power networks, it features a rated current of 1600 A and a voltage rating of 600 VAC. The unit utilizes busbar termination and chassis mount installation. Key electrical parameters include a leakage current of 5.1 mA and an operating frequency range of 0 Hz to 60 Hz. Physical dimensions are approximately 450 mm in length, 310 mm in width, and 220 mm in height, with an operating temperature range of -25°C to +100°C.

Feature Summary

• Engineered specifically for high-voltage IT power network environments requiring robust electromagnetic interference suppression.
• Capable of handling extreme continuous currents up to 1600 Amperes while maintaining stable filtering performance.
• Constructed with durable busbar connections to ensure secure and low-resistance electrical interfaces for heavy-duty loads.

Applications

• High-power industrial drive systems
• Large-scale renewable energy inverters
• Heavy manufacturing machinery power supplies

Procurement Notes

Verify that the specific HV variant matches the system's voltage requirements, as standard FN3359 models differ from the HV series. Confirm physical mounting constraints due to the substantial weight and chassis-mount design. Ensure busbar interface compatibility with existing distribution panels. Check for regional shipping restrictions related to the component's size and mass before finalizing orders.

Selection Notes

Select this model when standard filters cannot sustain the required 1600 A load or when 600 VAC operation is necessary. Compare against lower-rated FN3359 variants if current demands are lower to optimize cost and space. Validate that the chassis mounting style fits the enclosure layout. Consider thermal management capabilities given the high current density and potential heat generation during continuous operation.

Part Context

This component belongs to the FN3359 family of high-current power line filters. It serves as a specialized high-voltage version within the broader Schaffner portfolio, addressing specific needs in modern power electronics where standard industrial filters lack sufficient current or voltage ratings. It complements lower-amperage models like the FN3359-400-99 for scalable system designs.

Replacement Considerations

Direct substitutes may include other Schaffner high-current models such as the FN3359HV-2500-99 for higher capacity needs. Verify pinout and dimensional compatibility before swapping. Consult manufacturer documentation for cross-reference lists to ensure equivalent filtering characteristics and safety certifications are maintained.
