Product Detailed Parameters
- Description：LINE FILTER 2.5KA CHASSIS MOUNT
- Series：FN 3359
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：2.5 kA
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：400 V
- Voltage - Rated AC (Phase to Phase)：690 V
Download product information
Overview

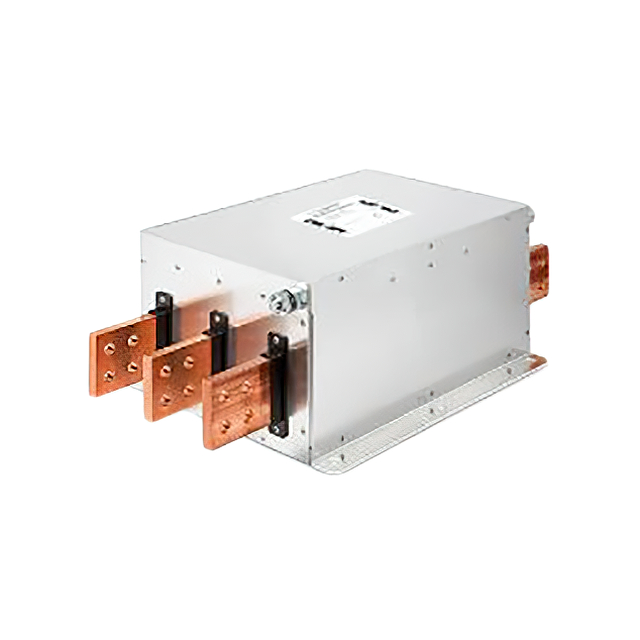

The FN3359HV-2500-99 is a three-phase high-current EMC power line filter manufactured by Schaffner. It features a chassis mount design with busbar termination for robust electrical connections. The component supports a rated voltage of 690 VAC and handles a continuous current of 2500 A. It operates within a temperature range of -25°C to +100°C and exhibits a leakage current of 5.1 mA. The physical dimensions are 450 mm in length and 220 mm in height, designed for industrial integration.
Feature Summary
- High-capacity three-phase filtering for heavy industrial loads
- Busbar termination ensures secure high-current connectivity
- Chassis mount construction for stable mechanical installation
Applications
- Industrial motor drive systems
- Large-scale manufacturing equipment
- Power distribution units requiring high current handling
Procurement Notes
Verify the specific voltage rating configuration against system requirements, as HV variants may differ from standard models. Confirm busbar termination compatibility with existing busbar dimensions and torque specifications. Ensure chassis mounting provisions align with the enclosure structure to maintain structural integrity under operational vibration.
Selection Notes
Select this model for applications demanding high current capacity up to 2500 A. Verify that the 690 VAC rating matches the network voltage. Consider the physical footprint of 450x220 mm for enclosure space planning. Ensure thermal management supports the +100°C maximum operating temperature limit.
Part Context
This component belongs to the FN3359 series of high-current filters. It is part of Schaffner's portfolio for managing electromagnetic interference in three-phase power systems. The HV designation indicates high-voltage capability suitable for industrial grid connections.
Replacement Considerations
The FN3359-2500-99 is a related variant within the same series. Verify if the standard voltage rating suffices for the application. Check if busbar termination remains compatible. Ensure the replacement meets the same current and dimensional requirements.
