FN3359HV-600-99

Overview

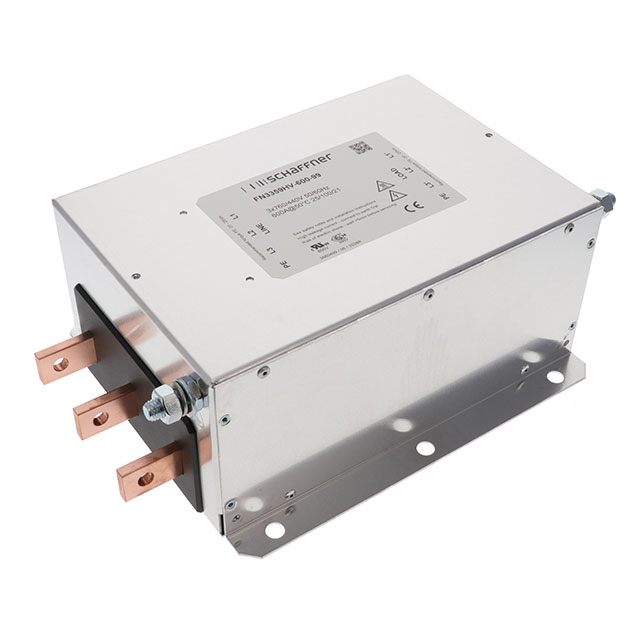

The Schaffner FN3359HV-600-99 is a three-phase EMC/EMI line filter designed for high-current industrial applications. It supports rated currents up to 600 A and operates at frequencies from DC to 60 Hz. The unit features a delta configuration with terminal post connections and chassis mounting. Physical dimensions are 300 mm x 260 mm x 135 mm, weighing approximately 11.0 kg. It provides Class A compliance with optional Class B approval measurements.

Feature Summary

• High-power filtering capability for demanding industrial environments
• Three-stage attenuation architecture for enhanced noise suppression
• Robust chassis-mount design suitable for heavy-duty integration

Applications

• Industrial motor drives and power conversion systems
• High-current manufacturing equipment requiring Class A compliance
• Power distribution units in industrial automation settings

Procurement Notes

Verify that the specific application requires the high-voltage variant (HV) designation, as standard models may differ in insulation ratings. Confirm terminal post compatibility with existing busbar or cable infrastructure before ordering. Ensure chassis mounting provisions align with the specified physical footprint of 300x260x135 mm. Check for any required Class B certification if stricter emission limits apply to the end product.

Selection Notes

Select this model when high current capacity near 600 A is necessary alongside effective EMI reduction. The delta configuration suits specific three-phase wiring topologies. Consider the physical size constraints due to the substantial housing dimensions. Evaluate thermal management requirements given the high current handling capabilities and potential heat dissipation needs in enclosed installations.

Part Context

This component belongs to the FN3359 series, which specializes in high-current EMC/RFI filtering solutions. The series offers off-the-shelf availability for currents ranging significantly higher than standard filters. It targets applications where robust electromagnetic compatibility is critical for system stability and regulatory adherence in heavy industrial sectors.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
