FN3412-35-33

Overview

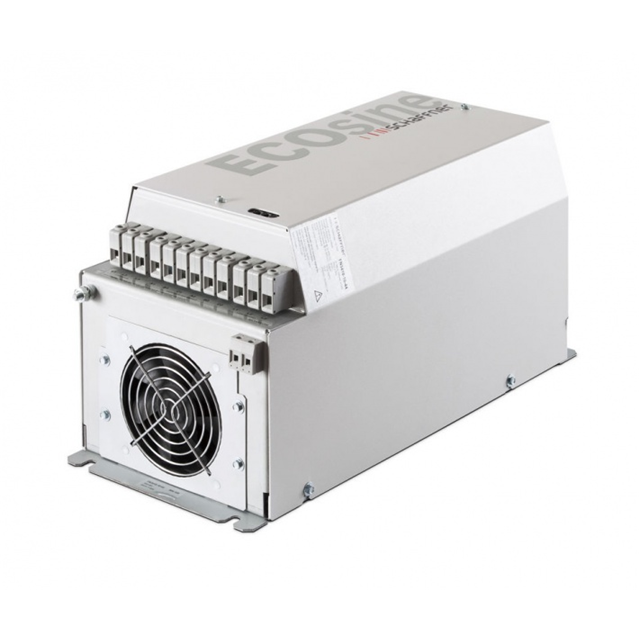

The Schaffner FN3412-35-33 is a three-phase EMC line filter designed for chassis mounting. It supports a rated current of 35 A and operates within an AC voltage range of 380 VAC to 480 VAC at 60 Hz. The unit utilizes terminal block connections for secure electrical interfacing. Designed for robust industrial environments, it functions reliably across a temperature range of -40°C to +100°C. This component provides essential electromagnetic interference suppression for power distribution systems requiring high current capacity.

Feature Summary

• Provides effective electromagnetic interference suppression for three-phase power lines
• Features durable chassis mounting design for stable industrial installation
• Utilizes terminal block connections for reliable electrical interfacing

Applications

• Integration with ACQ810-04 drive modules for enhanced EMC performance
• Power filtering in 60 Hz industrial power grid applications
• Electromagnetic compatibility enhancement for heavy machinery power supplies

Procurement Notes

Verify the specific part number FN3412-35-33 against official Schaffner documentation to confirm technical specifications. Ensure compatibility with 380VAC-480VAC systems and 35A current requirements. Check for updated compliance certifications and environmental declarations prior to procurement to ensure adherence to relevant regulatory standards.

Selection Notes

Select this model for applications requiring three-phase filtering at 35 A with terminal block termination. Confirm that the operating environment falls within the specified -40°C to +100°C temperature range. Verify that the system voltage aligns with the 380VAC-480VAC rating and that chassis mounting is feasible for the intended enclosure design.

Part Context

This component belongs to the FN3412 series, which is specifically engineered for 60 Hz power grids. It serves as a passive harmonic filter solution within the broader Schaffner EMC portfolio. The series is designed to meet stringent electromagnetic compatibility requirements for industrial power electronics and drive systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Schaffner documentation or authorized distributors for verified alternative components.
