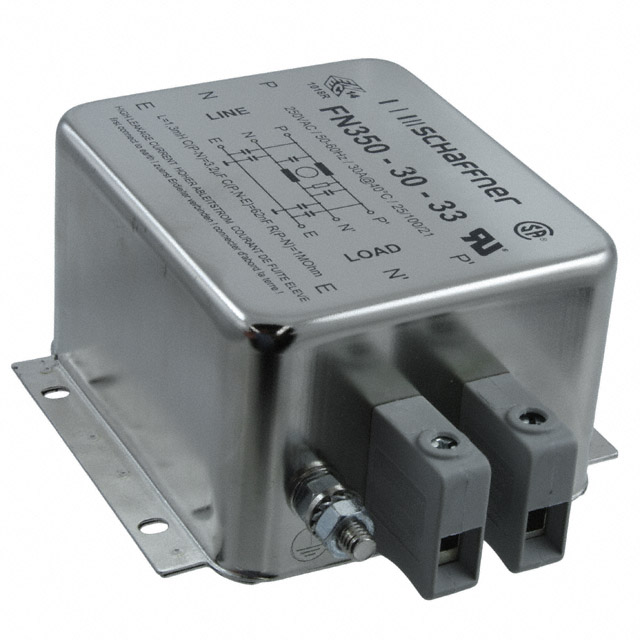

FN350-30-33

$173.94

Description：LINE FILTER 250VAC 30A CHASS MNT
Series：FN 350
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:d9bef87f78c6 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 30A CHASS MNT
Series：FN 350
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：30 A
Frequency - Operating：DC ~ 400Hz
Applications：Regenerative Motor Drive
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN350-30-33

Overview

The Schaffner FN350-30-33 is a single-phase EMC/RFI power line filter rated for 250 VAC and 30 A. It features chassis mounting with terminal block termination and operates within a frequency range of 0 Hz to 400 Hz. The unit has a leakage current of 11 mA and weighs 1.2 kg. It complies with UL, CSA, and IEC/EN standards.

Feature Summary

Single-stage compact design optimized for common and differential mode noise suppression
Industrial grade safety terminal blocks for secure connections
Chassis mount construction with IP20 protection rating

Applications

Motor drive systems
Industrial power conditioning equipment
EMC/RFI filtering in AC power lines

Procurement Notes

Verify the specific datasheet version for the FN350-30-33 to confirm exact compliance certificates and mechanical drawings. Ensure the application voltage does not exceed the 250 VAC rating. Confirm terminal block torque specifications during installation to maintain safety integrity.

Selection Notes

Select this component for single-phase applications requiring 30 A capacity at 250 VAC. The terminal block interface suits fixed installations where screw connections are preferred over PCB mounts. Consider the 1.2 kg weight for structural support requirements in the final assembly.

Part Context

This part belongs to the FN350 series of compact EMC filters from Schaffner. It is designed for industrial environments where space constraints and high current handling are critical. The series typically offers standardized performance levels for general-purpose power line filtering.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and terminal block spacing before considering alternative models.
