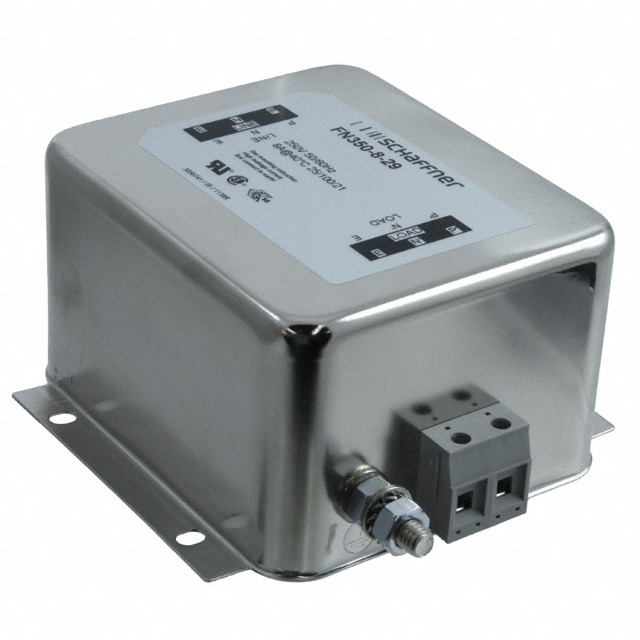

FN350-8-29

$112.23

Description：LINE FILTER 250VAC 8A CHASS MNT
Series：FN 350
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:4649892e0910 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 8A CHASS MNT
Series：FN 350
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：8:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：Regenerative Motor Drive
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN350-8-29

Overview

The Schaffner FN350-8-29 is a compact single-phase EMC/RFI filter designed for motor drive applications. It operates within a frequency range of DC to 400Hz and supports a rated AC voltage of 250VAC with an 8A current capacity. The component utilizes chassis mounting and features industrial-grade safety terminal blocks for secure connections. It is certified under CE, CSA, ENEC, and UR standards, ensuring compliance with international safety regulations.

Feature Summary

Compact design optimized for space-constrained motor drive installations
Industrial-grade safety terminal blocks for robust connection integrity
Dual certification support including CE, CSA, ENEC, and UR approvals

Applications

Single-phase motor drive systems
Industrial control cabinets requiring compact EMC filtering
Power supply input stages for AC motors

Procurement Notes

Verify the specific suffix '29' corresponds to the required terminal block configuration and lead time requirements. Confirm that the 8A rating and 250VAC specification align with the target circuit's electrical demands. Ensure chassis mounting provisions match the enclosure design constraints before finalizing procurement orders.

Selection Notes

Select this model when space limitations restrict the use of larger filters in single-phase motor drive circuits. The integrated safety terminal blocks simplify wiring compared to screw-terminal alternatives. Verify that the operating temperature range of -25°C to 100°C meets environmental conditions. Consider the two-stage filtering capability for enhanced noise attenuation needs.

Part Context

This component belongs to the FN350 series, which focuses on providing high-performance EMC filtering in a reduced footprint. The series targets applications where standard filters are too large for the available panel space. It maintains Schaffner's reputation for reliable noise suppression in demanding industrial environments while adhering to strict safety certifications.
