Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：FN 352Z
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：UR
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

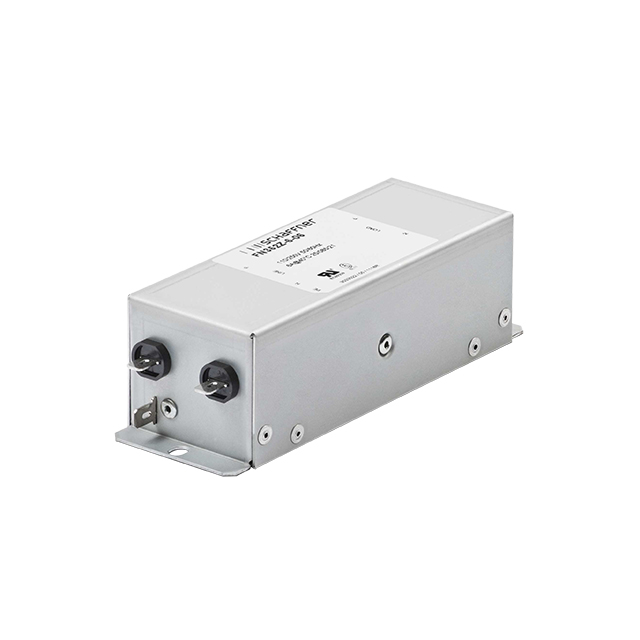

The Schaffner FN352Z-10-29 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It supports a maximum current of 10 A and operates at voltages up to 250 V AC within a frequency range of DC to 400 Hz. The component features a three-stage filtering configuration and utilizes terminal block connections for secure wiring. It is engineered to function reliably across an operating temperature range of -40°C to +85°C, ensuring effective electromagnetic interference suppression in demanding industrial environments.
Feature Summary
- Three-stage filtering architecture for enhanced noise attenuation
- Terminal block termination for robust electrical connectivity
- Chassis mount design for stable mechanical integration
Applications
- Industrial motor control systems
- Power supply units requiring EMI suppression
- Electronic equipment sensitive to electromagnetic interference
Procurement Notes
Verify the specific ordering suffix against official TE Connectivity Schaffner documentation to confirm terminal type and voltage ratings. Ensure compatibility with chassis mounting requirements and thermal management specifications. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status if required by project regulations.
Selection Notes
Select this model when a single-phase solution with high attenuation performance is required for frequencies up to 400 Hz. Consider the terminal block interface for applications needing secure screw-down connections rather than quick-connect terminals. Evaluate the three-stage design benefits over two-stage alternatives for stricter emission limits.
Part Context
This component belongs to the FN352Z series of power line filters manufactured by TE Connectivity Schaffner. The series is characterized by its compact chassis-mount form factor and high-performance filtering capabilities. It serves as a critical component for meeting international electromagnetic compatibility standards in various electronic assemblies.
Replacement Considerations
FN352Z-6-29
FAQ
What is the maximum operating voltage for the FN352Z-10-29?
The maximum rated AC voltage is 250 V.
How many filtering stages does this model utilize?
It utilizes a three-stage filtering configuration.
