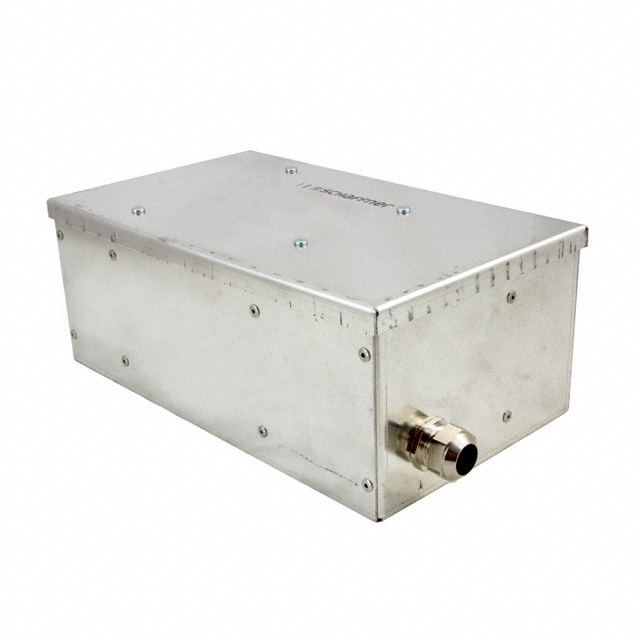

FN354-15-47

$479.92

Description：LINE FILTER 15A CHASSIS MOUNT
Series：FN 354
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:253f5ab8c95c Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 15A CHASSIS MOUNT
Series：FN 354
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：15 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：250 V
Voltage - Rated AC (Phase to Phase)：440 V

Download product information

FN354-15-47

Overview

The Schaffner FN354-15-47 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated current of 15 A and supports AC voltages of 110 V and 250 V within a frequency range of DC to 400 Hz. The component features a two-stage configuration with an inductance of 7.8 mH. It utilizes quick-connect terminals for installation and functions reliably across a temperature range of -25°C to 100°C. Certified by CSA, ENEC, and UR, it meets standard performance requirements for general-purpose filtering applications.

Feature Summary

Provides high attenuation performance through a two-stage filtering architecture
Designed for secure chassis mounting with quick-connect terminal interfaces
Includes integrated safety acceptances from major certification bodies

Applications

General-purpose EMC/EMI filtering for single-phase power lines
Industrial equipment requiring certified line filters
Motor drive systems needing compact EMI suppression

Procurement Notes

Verify the specific ordering suffix against the official datasheet to ensure correct terminal style and voltage ratings. Confirm that the required certifications (CSA, ENEC, UR) are valid for your target market. Check lead times as availability may vary. Ensure the chassis mounting dimensions fit your enclosure design before procurement.

Selection Notes

Select this model when a single-phase, chassis-mount solution is required for 15 A applications. Verify that the 7.8 mH inductance provides sufficient attenuation for your noise profile. Ensure the operating temperature range of -25°C to 100°C aligns with your environmental conditions. Confirm compatibility with 110 V/250 V AC systems.

Part Context

This component belongs to the FN354 series of standard performance single-phase filters. The series is engineered for cost-effective solutions in general-purpose filtering. It offers a balance of high attenuation and necessary safety acceptances. The product line is widely used in industrial and commercial electronic equipment.
