FN356-100-28

Overview

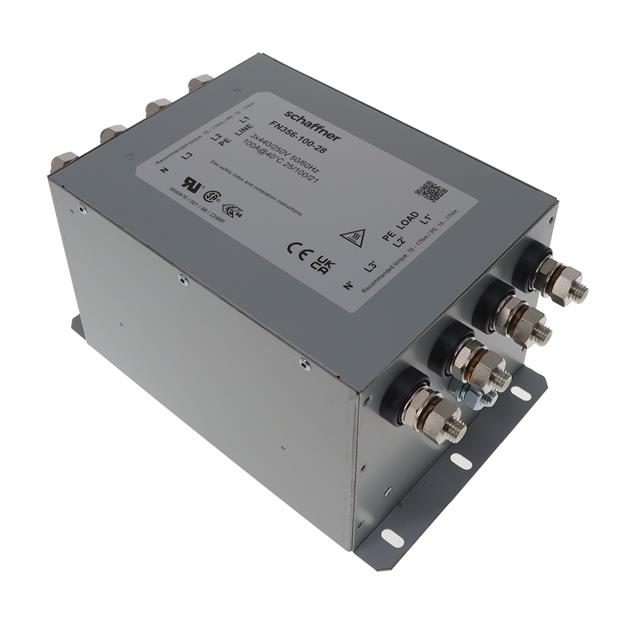

The Schaffner FN356-100-28 is a three-phase EMC power line filter designed for chassis mounting. It supports a maximum current of 100 A and operates at voltages up to 480 V AC. The unit functions within a frequency range of 0 Hz to 60 Hz. Key electrical specifications include a leakage current of 33 mA and a power loss of 34.5 W. The physical dimensions are 270 mm in length, 90 mm in depth, and 150 mm in height. It utilizes terminal block connections for installation.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Designed for secure chassis mounting applications
• Utilizes terminal block termination for electrical connectivity

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Power distribution equipment filtering

Procurement Notes

Verify the specific part number FN356-100-28 against official Schaffner documentation to confirm compatibility with your system requirements. Ensure that the chassis mounting configuration and terminal block interface match your enclosure design. Cross-reference the 100 A current rating and 480 V AC voltage limits with your operational parameters to prevent performance issues or safety hazards during integration.

Selection Notes

Select this component when a high-current three-phase filter is required for industrial environments. The chassis mount style suits panel integration where space efficiency is critical. Verify that the terminal block connection method aligns with existing wiring infrastructure. Confirm that the operating temperature range meets the environmental conditions of the intended deployment site.

Part Context

This component belongs to the Schaffner FN356 series of power line filters. The series is engineered for robust electromagnetic compatibility in demanding industrial settings. The model designation indicates specific current and voltage ratings tailored for heavy-duty applications. It represents a standardized solution for mitigating conducted emissions in three-phase power circuits.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Schaffner documentation for verified cross-references before replacing this unit.
