FN356-16-06

Overview

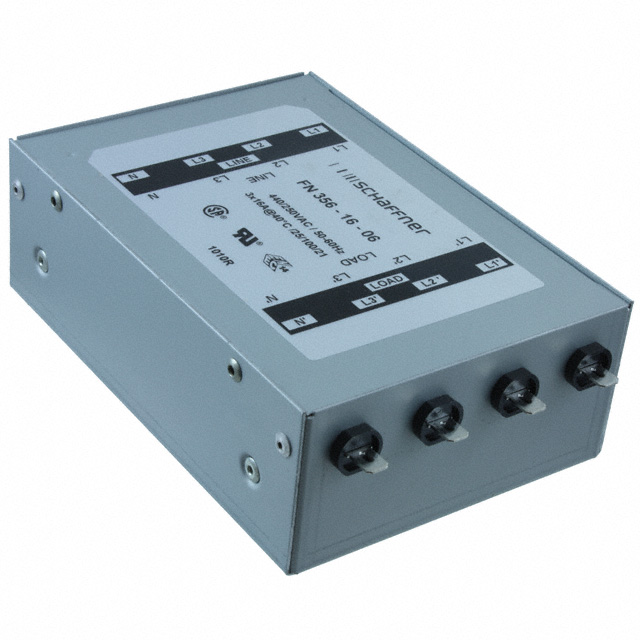

The Schaffner FN356-16-06 is a three-phase and neutral power line filter designed for chassis mounting. It features a rated current of 16 A and operates at frequencies from 0 Hz to 60 Hz with voltage ratings of 250 VAC and 440 VAC. The unit utilizes faston terminal connections and exhibits a leakage current of 430 uA. Certified by UL, CSA, and IEC/EN standards, this component belongs to the FN 356 series and weighs approximately 1.2 kg.

Feature Summary

• Provides electromagnetic interference suppression for three-phase and neutral circuits
• Engineered for secure chassis mounting applications
• Utilizes faston terminal style for electrical interconnection

Applications

• Industrial power conditioning systems
• Renewable energy equipment filtering
• General safety-critical AC power lines

Procurement Notes

Verify availability status as official documentation indicates end-of-life notification dated February 5, 2024. Confirm specific terminal compatibility and certification requirements against original design specifications before procurement. Check for authorized substitute part numbers such as FN3256H-16-29 if direct sourcing is unavailable.

Selection Notes

Select this component for applications requiring three-phase filtering with a 16 A capacity. Ensure the operating environment supports the specified 250 VAC and 440 VAC ratings. Verify that chassis mounting constraints and faston terminal interfaces align with the system design requirements.

Part Context

This filter is part of the FN 356 series manufactured by TE Connectivity / Schaffner. The series focuses on power line filtration for industrial and renewable resource applications. The component adheres to international safety standards including UL, CSA, and IEC/EN compliance frameworks.

Replacement Considerations

Official documentation lists FN3256H-16-29 as a potential replacement option due to the discontinuation notice.
