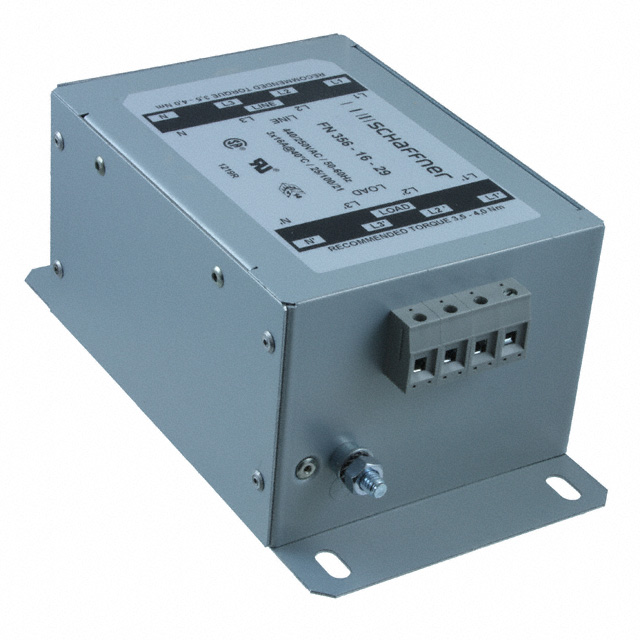

FN356-16-29

Description：LINE FILTER 16A CHASSIS MOUNT
Series：FN 356
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:7a88a1cf35d4 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 16A CHASSIS MOUNT
Series：FN 356
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：16 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：250 V
Voltage - Rated AC (Phase to Phase)：440 V

Download product information

FN356-16-29

Overview

The Schaffner FN356-16-29 is a three-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 16 A and operates at voltages up to 440 VAC or 250 VAC, with a frequency range of 0 Hz to 60 Hz. The component utilizes terminal block termination for electrical connections. Key electrical parameters include a leakage current of 430 uA. It is certified by UL, CSA, and IEC/EN standards.

Feature Summary

Provides electromagnetic interference suppression for three-phase power lines
Features robust chassis mount construction for secure installation
Utilizes terminal block termination for reliable electrical connectivity

Applications

General purpose industrial equipment requiring EMI filtering
Three-phase power distribution systems
Electronic devices sensitive to conducted emissions

Procurement Notes

Verify the specific voltage rating (440 VAC vs 250 VAC) required for your application against the datasheet specifications. Confirm that the terminal block termination style matches your wiring infrastructure. Ensure compliance with local safety certifications such as UL, CSA, or IEC/EN before integration into final assemblies.

Selection Notes

Select this model when a three-phase configuration is necessary for 16 A loads. Consider the chassis mount form factor if panel space allows. Evaluate the 430 uA leakage current against safety limits for personnel protection in medical or sensitive environments. Compare against the FN351 series if different termination styles are preferred.

Part Context

This component belongs to the FN356 series of power line filters manufactured by TE Connectivity / Schaffner. The series is engineered for general-purpose EMC applications in industrial settings. It represents a standard solution for mitigating radio frequency interference in three-phase AC power circuits.

Replacement Considerations

Public documentation indicates the FN351H-16-29 as a potential replacement option. Verify compatibility regarding voltage ratings, termination types, and physical dimensions before substitution.
