Product Detailed Parameters
- Description：LINE FILTER 36A CHASSIS MOUNT
- Series：FN 356
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：36 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：250 V
- Voltage - Rated AC (Phase to Phase)：440 V
Download product information
Overview

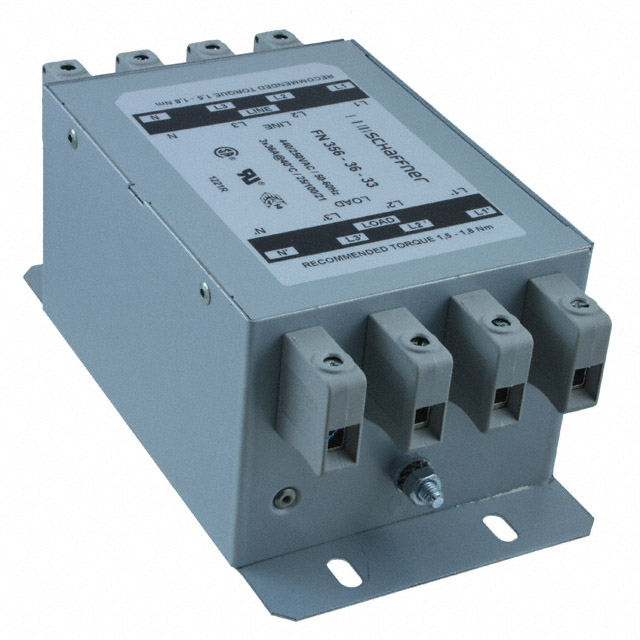

The Schaffner FN356-36-33 is a three-phase (Wye) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 36 A and operates at voltages up to 440 VAC or 480 VAC, with a relative-to-neutral rating of 300 V and relative-to-phase of 520 V. The unit features a single-stage configuration with terminal block connections and functions within a temperature range of -25°C to 100°C. Certified by CSA, ENEC, and UR, it complies with RoHS3 standards.
Feature Summary
- Provides high attenuation for electromagnetic interference in three-phase systems including the neutral conductor
- Engineered as an industry standard solution for general four-wire filtering tasks
- Constructed for robust chassis mounting applications
Applications
- General four-wire filtering tasks
- EMC compliance for three-phase equipment
- Industrial power distribution systems
Procurement Notes
Verify component authenticity through authorized TE Connectivity Schaffner channels. Confirm that the specific part number matches project requirements, noting that this model may be listed as obsolete or discontinued by some distributors. Ensure compatibility with existing chassis mounting hardware and terminal block wiring specifications before finalizing procurement decisions.
Selection Notes
Select this filter when three-phase Wye configurations with neutral conductors are required. Ensure the operating voltage does not exceed 440 VAC or 480 VAC depending on the specific application standard. Verify that the 36 A current rating aligns with the load requirements and that the chassis mounting style fits the enclosure design constraints.
Part Context
This component belongs to the FN 356 series, which represents industry-standard filter solutions for EMC compliance. Manufactured by Schaffner EMC Inc., now part of TE Connectivity, these filters are designed for general-purpose industrial applications requiring reliable noise suppression in three-phase power lines.
Replacement Considerations
Public sources indicate this model is discontinued or obsolete. Verify availability of direct substitutes such as the FN3256H-36-33, ensuring identical electrical ratings and mounting configurations before substitution.
