Product Detailed Parameters
- Description：LINE FILTER 250VAC 6.5A TH
- Series：FN 402
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6.5 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：1mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

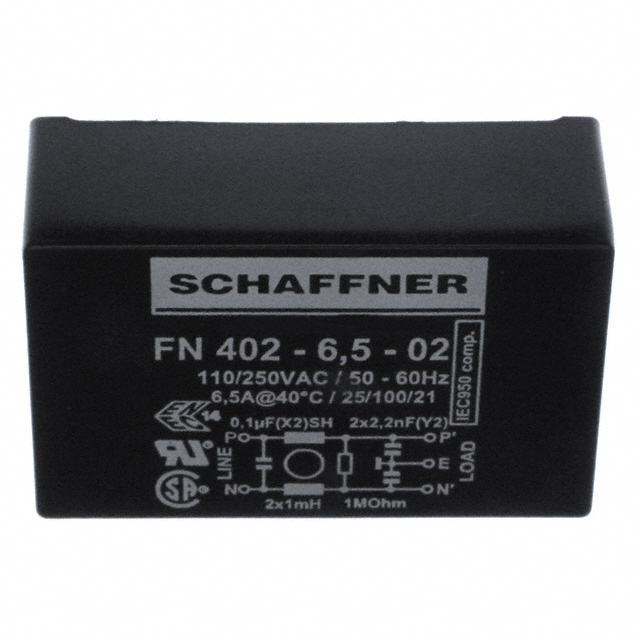

The Schaffner FN402-6.5-02 is a single-phase power line filter designed for printed circuit board (PCB) mounting. It features a rated voltage of 250 VAC and a current rating of 6.5 A, operating within a frequency range of 0 Hz to 400 Hz. The component utilizes through-hole solder pin termination and exhibits a leakage current of 373 uA. It complies with UL, CSA, and IEC/EN safety standards.
Feature Summary
- Designed as a low-cost PCB filter solution for electromagnetic interference suppression
- Supports through-hole installation with solder pin termination for secure board integration
Applications
- General purpose electronic equipment requiring single-phase power filtering
- Industrial control systems utilizing standard AC power inputs
- Consumer appliances compliant with international safety regulations
Procurement Notes
Verify the specific manufacturer designation, as TE Connectivity and Schaffner are associated with this part number in public records. Confirm that the 6.5 A current rating and 250 VAC voltage specifications match your system requirements. Ensure the through-hole package style is compatible with your PCB layout and assembly processes before finalizing procurement.
Selection Notes
Select this component when a cost-effective, single-phase EMI filter is required for currents up to 6.5 A. The low leakage current specification makes it suitable for sensitive applications where safety isolation is critical. Verify that the operating frequency range of 0 Hz to 400 Hz aligns with your power supply characteristics.
Part Context
This component belongs to the FN402 series of power line filters. The series offers various current ratings and configurations, including medical-grade variants like the FN402B series. The FN402-6.5-02 specifically addresses general-purpose filtering needs with standardized PCB mounting capabilities.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer cross-reference lists for verified alternatives.
