FN402B-6.5-02

Overview

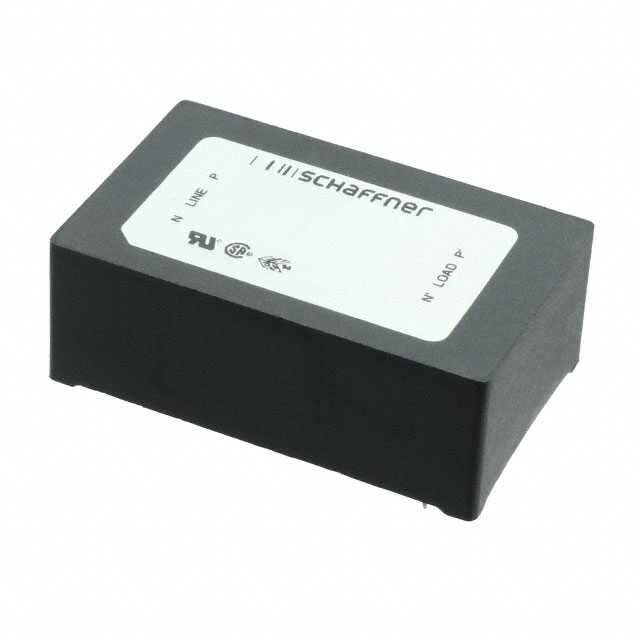

The FN402B-6.5-02 is a single-phase power line filter from the Schaffner FN402 series, manufactured by TE Connectivity / Schaffner. It features a through-hole mounting style with solder pin termination. The component is rated for 6.5 A current and 250 VAC voltage, operating within a frequency range of 0 Hz to 400 Hz. Designed for medical applications, it offers low-cost PCB or chassis mounting capabilities.

Feature Summary

• Designed specifically for medical purpose applications
• Provides low-cost PCB or chassis mounting options
• Single-phase power line filtering capability

Applications

• Medical equipment power conditioning
• PCB mounted EMI suppression
• Chassis mounted noise filtration

Procurement Notes

Verify the manufacturer designation as TE Connectivity / Schaffner when sourcing. Confirm RoHS compliance status via official documentation. Ensure the specific suffix -02 matches the required termination and packaging configuration for your assembly process.

Selection Notes

Select this model for single-phase AC circuits requiring 6.5 A rating at 250 VAC. It is suitable for designs needing through-hole installation. Consider the FN402B variant specifically if medical certification requirements are part of the design criteria compared to standard industrial filters.

Part Context

This component belongs to the FN402 series of power line filters. It shares the series characteristics but is distinguished by its 6.5 A current rating and B-series designation indicating medical application suitability. It complements other ratings in the family such as 1.6 A or 2.5 A variants.

Replacement Considerations

FN402-6.5-02 serves as a non-medical alternative within the same series.
