Product Detailed Parameters
- Description：LINE FILTER 250VAC 6A TH
- Series：FN 406
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：780µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

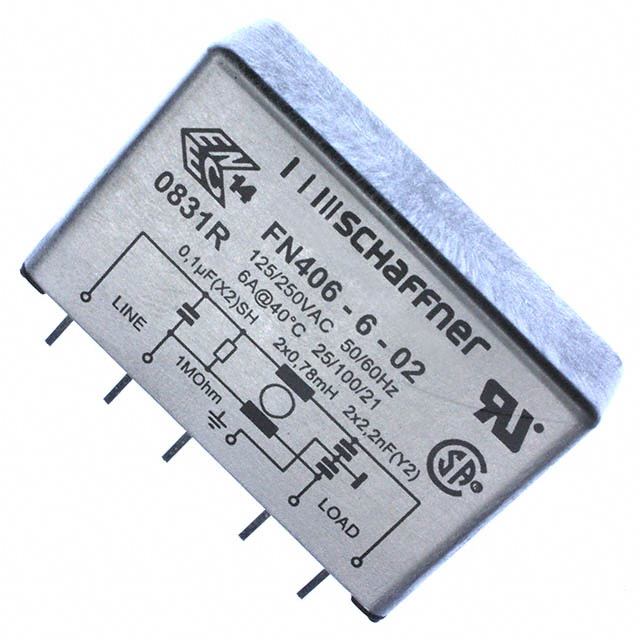

The Schaffner FN406-6-02 is a single-phase power line filter designed for PCB mounting. It features an amperage rating of 6 A and a voltage rating of 250 VAC. The component operates within a frequency range of 0 Hz to 400 Hz. It utilizes through-hole solder pin termination for secure installation on printed circuit boards.
Feature Summary
- Single-stage EMC/EMI filtering architecture
- Compact design optimized for direct PCB integration
- Through-hole solder pin termination
Applications
- Single-phase power supply input stages
- Electronic equipment requiring EMI suppression
- PCB-mounted power conditioning modules
Procurement Notes
Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with your system's voltage, current, and frequency requirements before procurement.
Selection Notes
Select this component based on its 6 A current capacity and 250 VAC rating. Confirm that the through-hole mounting style and single-phase configuration align with the target PCB layout and power distribution architecture.
Part Context
This component belongs to the FN406 series of single-phase power line filters manufactured by TE Connectivity / Schaffner. The series offers various amperage ratings for compact PCB mounting applications.
FAQ
What is the maximum operating frequency?
The component is rated for operation from 0 Hz to 400 Hz.
What type of termination does it use?
It uses through-hole solder pins for PCB mounting.
