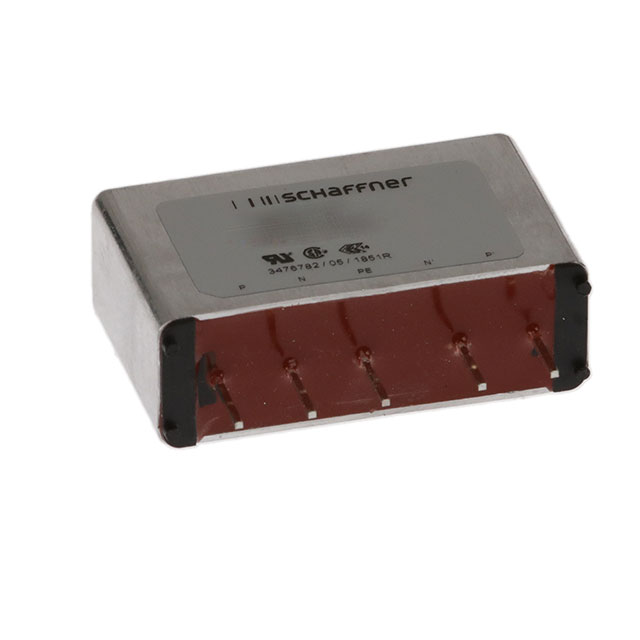

FN406B-1-02

$13.05

Description：LINE FILTER 250VAC 1A TH
Series：FN 406
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:7b7b6184b2fa Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 1A TH
Series：FN 406
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：1:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Through Hole
Termination Style：PC Pins
Inductance：12mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN406B-1-02

Overview

The Schaffner FN406B-1-02 is a single-phase power line filter designed for PCB mounting. It supports a rated voltage of 250 VAC and a continuous current of 1 A. The component operates within a frequency range of 0 Hz to 400 Hz. It features solder pin termination and complies with UL, CSA, and IEC/EN standards. This medical-grade filter utilizes through-hole installation for integration into electronic systems.

Feature Summary

Medical-grade construction compliant with safety standards
Single-stage EMI/RFI attenuation capability
PCB mount design with solder pin termination

Applications

Medical equipment power supplies
Industrial control systems
Electronic instrumentation

Procurement Notes

Verify the specific part number against official TE Connectivity / Schaffner documentation to confirm medical certification status and electrical ratings. Ensure compatibility with system voltage and current requirements before procurement. Cross-reference datasheets for accurate mechanical dimensions and compliance certificates.

Selection Notes

Select this component for applications requiring certified medical safety isolation in compact PCB layouts. Evaluate leakage current specifications against regulatory limits. Confirm thermal performance under maximum load conditions. Compare attenuation characteristics at target noise frequencies against alternative filters in the FN406 series.

Part Context

This model belongs to the FN406 series of single-phase power line filters manufactured by TE Connectivity / Schaffner. The series offers various current ratings for PCB integration. The 'B' suffix typically denotes medical-grade variants within the product family, distinguishing them from standard industrial versions.

Replacement Considerations

Check for direct substitutes such as FN406-1-02 or FN406B-0.5-02 if current requirements differ. Verify that any replacement maintains identical medical certification and mounting footprint. Consult official cross-reference lists for confirmed equivalents.
