FN410-1-02

Overview

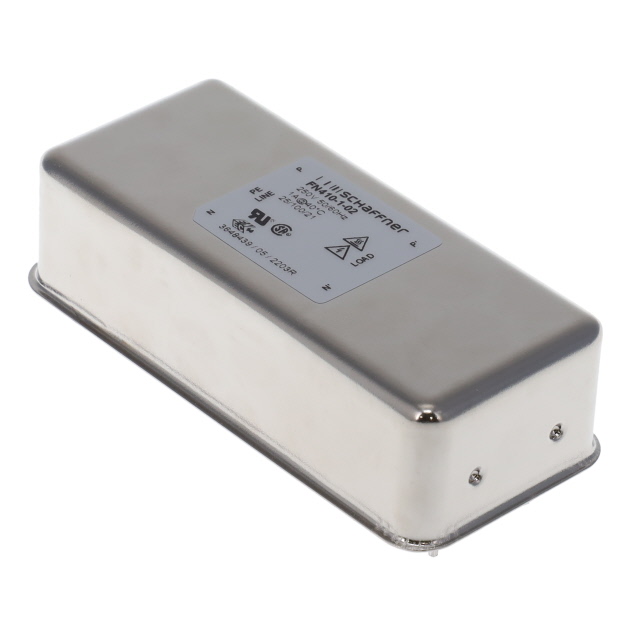

The Schaffner FN410-1-02 is a single-phase, two-stage PCB-mounting EMC filter designed for power line filtering. It features a rated voltage of 250 VAC and a current rating of 1 A. The component operates within a frequency range of 0 Hz to 400 Hz and utilizes through-hole solder pin termination. Key electrical specifications include a leakage current of 373 uA. The device complies with UL, CSA, and IEC/EN standards, ensuring suitability for various electronic applications requiring electromagnetic interference suppression.

Feature Summary

• Two-stage filtering architecture for enhanced EMI suppression
• Designed for direct printed circuit board mounting
• Single-phase configuration for AC power lines

Applications

• Power supply input stages
• Electronic equipment requiring EMC compliance
• Industrial control systems

Procurement Notes

Verify the specific part number FN410-1-02 against official TE Connectivity/Schaffner documentation to confirm ratings and compliance status. Ensure compatibility with your system's voltage, current, and mounting requirements before procurement.

Selection Notes

Select this component when a compact, two-stage EMI filter is required for single-phase AC applications. Consider the 1 A current rating and 250 VAC voltage limit. Verify that through-hole mounting and solder pin termination align with your PCB design constraints.

Part Context

The FN410 series represents high-performance PCB-mounting filters from Schaffner. These components are engineered for efficient space utilization while providing robust electromagnetic interference reduction in sensitive electronic circuits.

Replacement Considerations

Consult official datasheets for cross-references. No public substitute part numbers are confirmed in the provided source material.
