FN410-6-02

Overview

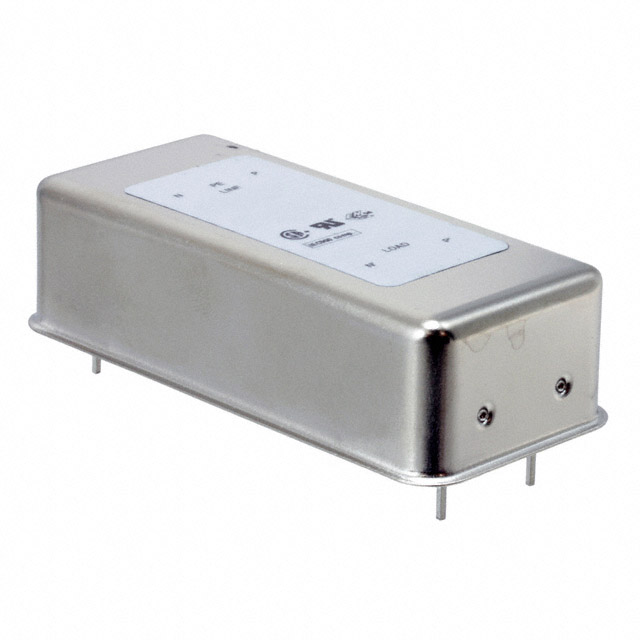

The FN410-6-02 is a single-phase PCB power line filter from the Schaffner FN410 series, manufactured by TE Connectivity. It features a two-stage LC configuration designed for EMI suppression in AC power circuits. The component supports a rated voltage of 250 VAC and a continuous current of 6 A. Key electrical parameters include an inductance of 800 uH, capacitance of 0.033 uF, and leakage current of 373 uA. It operates within a frequency range of 0 Hz to 400 Hz and utilizes through-hole solder pin termination.

Feature Summary

• Two-stage filtering architecture provides enhanced attenuation performance for electromagnetic interference.

Applications

• Power supply input stages
• Industrial control systems
• Medical equipment

Procurement Notes

Verify the manufacturer part number FN410-6-02 against official TE Connectivity documentation to ensure authenticity. Confirm that the specific order suffix matches the required lead frame and terminal configuration. Check RoHS compliance status and certification marks such as UL and CSA on the datasheet before integration into safety-critical designs.

Selection Notes

Select this component when a compact, two-stage solution is required for 6 A single-phase applications. Ensure the PCB layout accommodates through-hole solder pins and the physical dimensions of the filter. Verify that the 373 uA leakage current meets the safety requirements of the end application.

Part Context

This component belongs to the FN410 series of PCB-mounted power line filters. The series offers various current ratings and configurations for general-purpose EMI suppression. The FN410-6-02 specifically addresses the needs of applications requiring moderate current handling with high attenuation characteristics in a small form factor.

Replacement Considerations

Consult the official datasheet for direct cross-reference information. No public substitute part numbers are confirmed in the provided source material.
