FN422-2.5-13

$16.69

Description：LINE FLTR 250VAC 2.5A CHASS MNT
Series：FN 422
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:6ff3b79a8d8a Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 250VAC 2.5A CHASS MNT
Series：FN 422
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：2.5 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：3.4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN422-2.5-13

Overview

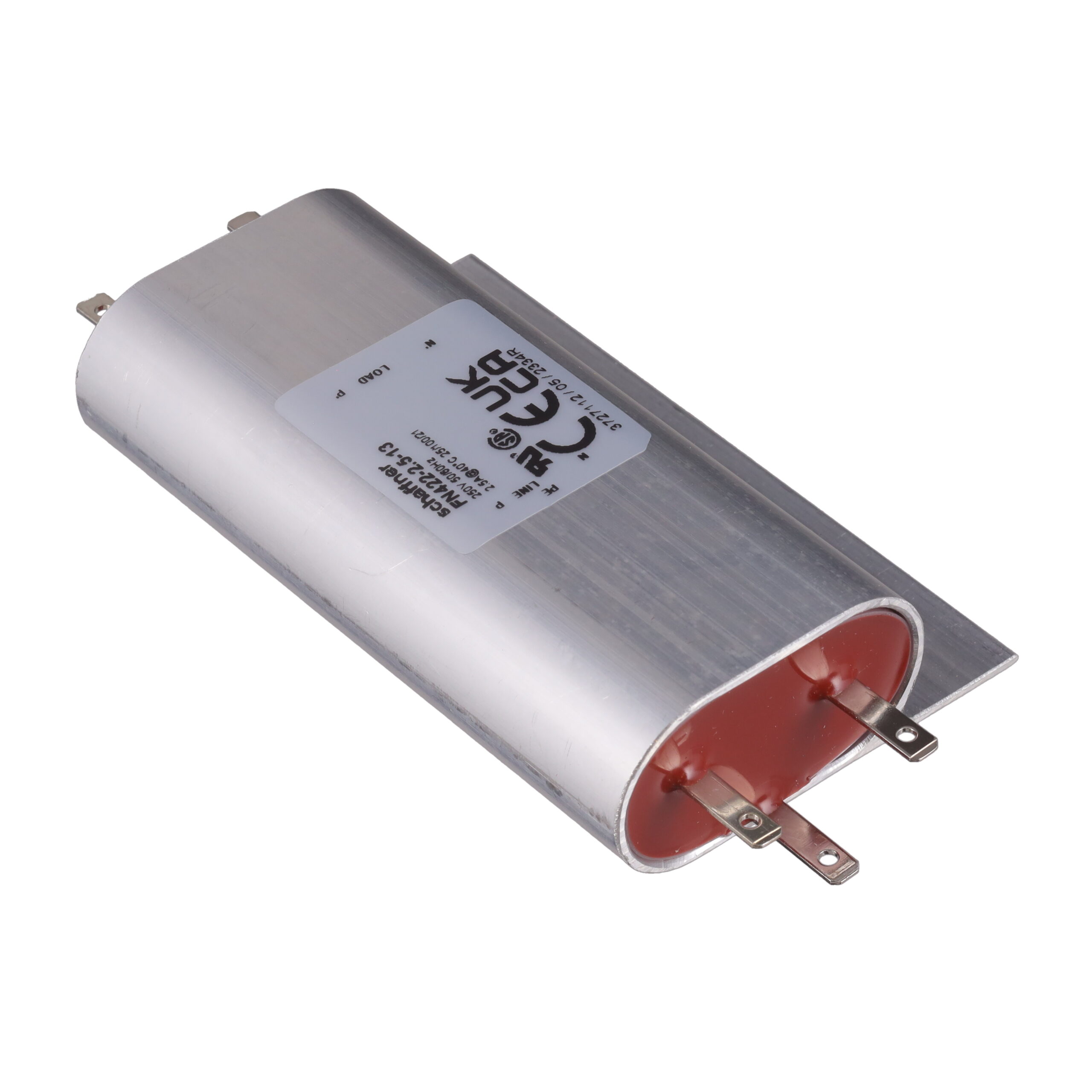

The Schaffner FN422-2.5-13 is a single-phase EMI power line filter module designed for PCB mounting. It supports a rated current of 2.5 A and operates at voltages up to 250 V AC, with frequency compatibility extending to 400 Hz. The component utilizes quick-connect terminals for circuit integration and provides electromagnetic interference mitigation in a compact form factor suitable for space-constrained electronic assemblies.

Feature Summary

Single-stage electromagnetic interference filtering architecture
Quick-connect terminal interface for rapid PCB assembly
Designed for operation at frequencies up to 400 Hz

Applications

Single-phase power supply input stages
Electronic equipment requiring 400 Hz compatibility
Space-constrained PCB-mounted filter applications

Procurement Notes

Verify the specific datasheet version for the FN422-2.5-13 to confirm current ratings and thermal characteristics. Ensure the application voltage does not exceed the 250 V AC limit. Confirm that the quick-connect terminal spacing matches the target PCB footprint. Check for any recent lifecycle status updates regarding availability or recommended alternatives.

Selection Notes

Select this component when a single-phase filter with a 2.5 A rating is required for PCB integration. It is appropriate for systems operating at standard mains frequencies or up to 400 Hz. Consider the physical dimensions and terminal type during layout planning. Evaluate leakage current requirements against the filter's specifications before finalizing the design.

Part Context

This part belongs to the Schaffner FN422 series of single-phase EMI filters. The series offers various current ratings and terminal configurations to suit different power levels. These modules are engineered for efficient noise suppression in compact electronic devices, providing reliable performance in industrial and commercial applications.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers within the FN422 series or compatible families. Ensure any replacement maintains the same current, voltage, and terminal interface specifications.
