FN5030-55-34

Overview

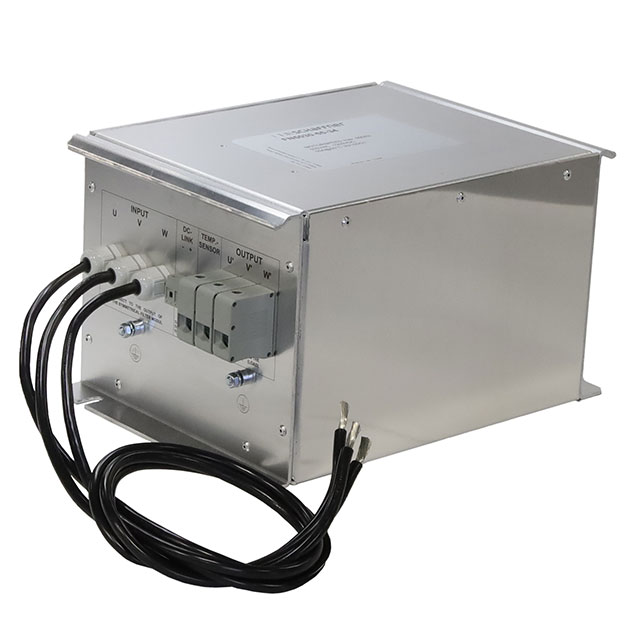

The Schaffner FN5030-55-34 is a three-phase power line filter module designed for sinusoidal output applications. It features a chassis mount configuration with a rated current of 55 A and operates at frequencies ranging from 6 kHz to higher ranges typical for sine wave filters. The unit is constructed as an add-on module compatible with specific Schaffner drive filter families.

Feature Summary

• Eliminates premature motor failure caused by bearing damage through sine wave filtering
• Designed as an add-on module for integration with existing drive systems
• Suitable for use with FN5040 and FN5045 series components

Applications

• Sine wave output filtering for variable frequency drives
• Protection against motor bearing currents in industrial automation
• Integration with FN5040/5045 drive filter systems

Procurement Notes

Verify component status carefully, as official documentation indicates this part was subject to discontinuation notification on April 24, 2024. Confirm availability with authorized distributors or TE Connectivity directly, as supply may be restricted or limited. Ensure the source provides valid traceability for discontinued electronic components.

Selection Notes

Select this module specifically for applications requiring sine wave output conditioning to protect motors from bearing damage. It is intended as an add-on component rather than a standalone filter. Verify compatibility with the host system, specifically ensuring it matches the requirements for use with FN5040 or FN5045 series units before procurement.

Part Context

This component belongs to the FN5030 series of power line filter modules manufactured by Schaffner EMC Inc., now part of TE Connectivity. These modules are engineered to address electromagnetic interference and motor protection issues in high-power industrial drive environments, serving as specialized add-ons to main filtration assemblies.
