Product Detailed Parameters
- Description：LINE FILTER 75A CHASSIS MOUNT
- Series：FN 5030
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：75 A
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：288 V
- Voltage - Rated AC (Phase to Phase)：500 V
Download product information
Overview

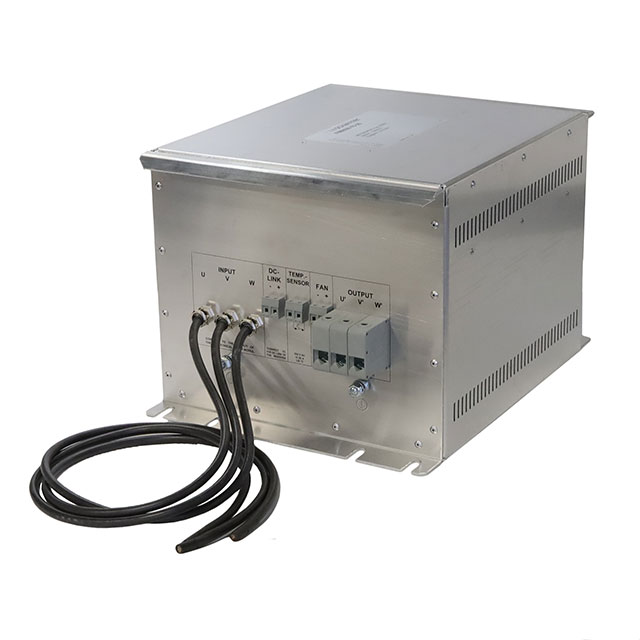

The Schaffner FN5030-75-35 is a three-phase chassis-mount line filter designed for electromagnetic interference suppression. It features a rated current of 75 A and operates within an ambient temperature range of -25°C to +100°C. The unit supports AC voltages up to 288 V and utilizes a terminal block connection with wire leads. This component is RoHS compliant and lead-free, ensuring adherence to environmental standards while providing robust filtering performance in industrial power applications.
Feature Summary
- Chassis mount design for secure installation
- Three-phase EMC/EMI line filtering capability
- Terminal block connection with wire leads
Applications
- Industrial power distribution systems
- Electromagnetic compatibility filtering for three-phase equipment
- Chassis-mounted noise suppression in heavy machinery
Procurement Notes
Verify the specific part number FN5030-75-35 against official Schaffner documentation to confirm the 75A rating and 288V AC specification. Ensure the chassis mount configuration and terminal block interface match your system requirements. Confirm RoHS compliance status if required by your manufacturing standards. Cross-reference datasheet details for mounting dimensions and thermal characteristics before integration.
Selection Notes
Select this component when a three-phase solution with a 75A continuous current rating is required. The chassis mount style suits applications where panel or frame attachment is preferred over PCB mounting. Verify that the operating voltage does not exceed 288V AC and that the ambient temperature remains within the specified -25°C to +100°C range. Ensure sufficient space for chassis installation and terminal access.
Part Context
This component belongs to the Schaffner FN5030 series of line filters. The series offers various current ratings and configurations for three-phase applications. The FN5030-75-35 specifically denotes the 75A variant with chassis mounting capabilities. It is manufactured by Schaffner EMC Inc., a provider of electromagnetic interference solutions.
Replacement Considerations
Consult official Schaffner substitution guides for verified equivalents. Do not assume generic three-phase filters are compatible due to differing electrical ratings and mounting styles.
