Product Detailed Parameters
- Description：LINE FILTER 24A CHASSIS MOUNT
- Series：FN 5040
- Mfr：Schaffner EMC Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：24 A
- Frequency - Operating：-
- Applications：Regenerative Motor Drive
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 70°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：2.4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

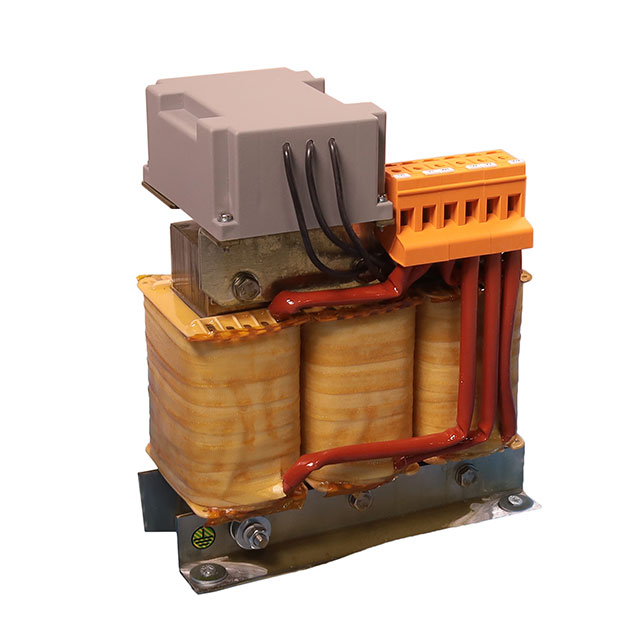

The FN5040-24-84 is a three-phase single-stage power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount installation style with wire termination. The unit has a voltage rating of 525 VAC and a current rating of 24 A. It operates within a frequency range of 0 Hz to 200 Hz. The component weighs 12.836 kg and holds UL and EN compliance certifications.
Feature Summary
- Three-phase single-stage filtering architecture
- Chassis mount construction for secure integration
- Wire termination for flexible electrical connections
Applications
- Sine wave output filter applications
- Industrial power conditioning systems
- Frequency inverter input protection
Procurement Notes
Verify the specific ordering suffix and technical datasheet version before procurement. Confirm that shipping restrictions apply due to the product's weight and dimensions, which may limit transport options to certain countries. Ensure the required voltage and current ratings match the system design specifications exactly.
Selection Notes
Select this model when a three-phase filter with a 24 A continuous current rating is required. The 525 VAC rating supports standard industrial voltage levels. Consider the chassis mount style and wire leads for mechanical integration. Verify that the IP00 enclosure rating meets the environmental protection requirements of the installation site.
Part Context
This component belongs to the FN5040 series of power line filters designed by Schaffner EMC Inc., now part of TE Connectivity. The series provides electromagnetic interference suppression for three-phase power lines. The FN5040-24-84 variant specifically addresses lower current applications compared to higher-rated models in the same family.
Replacement Considerations
Check for updated part numbers from TE Connectivity / Schaffner as legacy codes may change. Verify compatibility with existing mounting structures and terminal configurations if substituting with other FN5040 variants.
