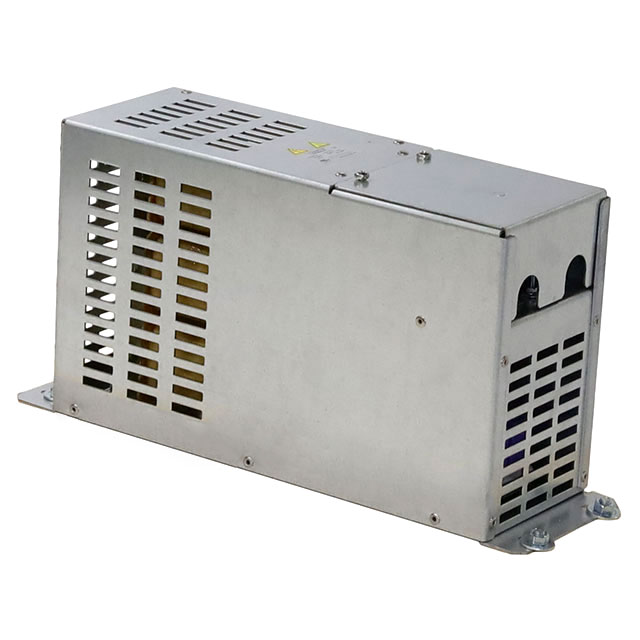

FN5045-8-44

Description：LINE FILTER 8A CHASSIS MOUNT
Series：FN 5045
Mfr：Schaffner EMC Inc.
Package：Box

SKU:dfb8b11142a3 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 8A CHASSIS MOUNT
Series：FN 5045
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：8:00 AM
Frequency - Operating：-
Applications：Regenerative Motor Drive
Approval Agency：cURus
Operating Temperature：-25°C ~ 70°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：6.9mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN5045-8-44

Overview

The FN5045-8-44 is a three-phase single-stage power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount installation style with cable termination. The unit has a voltage rating of 525 VAC and a current rating of 8 A. The inductance value is 6.9 mH, and it operates within a temperature range of -25 C to +45 C. The component weighs 5.4 kg and complies with UL and EN standards.

Feature Summary

Designed for frequency inverter applications
Three-phase single-stage filtering architecture
Chassis mount construction with cable connections

Applications

Frequency inverters
Industrial power conditioning systems

Procurement Notes

Verify the obsolete status of this component before procurement planning. Confirm that alternative sourcing channels are available as standard distribution may be restricted. Ensure compatibility with existing chassis mounting hardware and cable termination requirements during replacement evaluation.

Selection Notes

Select this model when a three-phase solution with 8 A capacity and 525 VAC rating is required. Verify that the 6.9 mH inductance meets specific EMI suppression needs. Check that the operating temperature range fits the installation environment constraints.

Part Context

This component belongs to the FN5045 series of power line filters from TE Connectivity / Schaffner. The series provides various current ratings for industrial power conditioning. This specific part number represents an 8 A variant designed for robust electromagnetic interference reduction in heavy-duty electrical systems.

Replacement Considerations

Check for direct substitutes within the FN5045 series with matching 8 A and 525 VAC specifications. Verify mechanical dimensions and terminal types for compatibility.
