Product Detailed Parameters
- Description：LINE FILTER 12A CHASSIS MOUNT
- Series：FN 510
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：-
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：12:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-25°C ~ 70°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：288 V
- Voltage - Rated AC (Phase to Phase)：500 V
Download product information
Overview

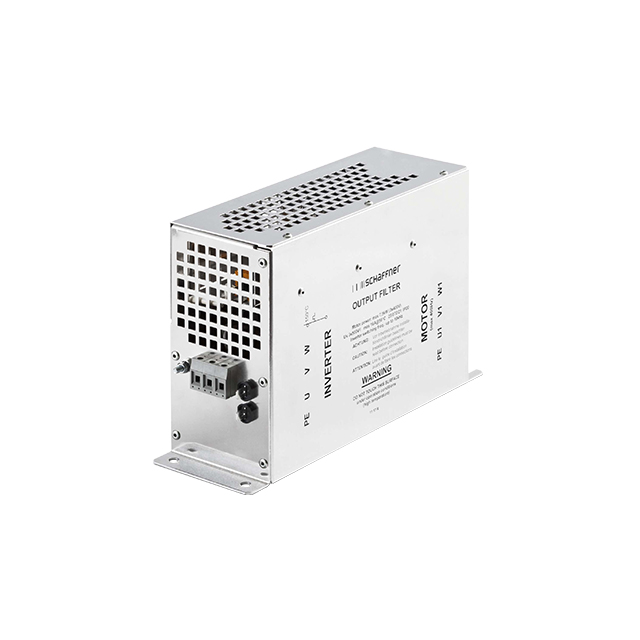

The FN510-12-29 is a three-phase power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with terminal block output connections. The unit supports a rated current of 12 A and operates at voltage ratings of 288 VAC and 500 VAC. Designed for inverter frequency inversion applications, it functions within a motor frequency range of 0 to 400 Hz. The component weighs approximately 4 kg and carries the part number alias 800689-SF.
Feature Summary
- Provides electromagnetic interference suppression for three-phase systems
- Engineered specifically for output filtering in frequency inverters
- Utilizes a robust chassis mount construction for secure installation
Applications
- Three-phase inverter frequency inversion systems
- Industrial motor drive EMC protection
- Power conditioning for variable speed drives
Procurement Notes
Verify component status carefully as this specific model is listed as obsolete or discontinued by major distributors such as Mouser. Confirm availability through authorized TE Connectivity channels or secondary markets. Ensure that any sourced units match the original specifications and certifications required for your application compliance.
Selection Notes
Select this component when designing three-phase systems requiring dedicated output filtering for inverter-driven motors. The 12 A rating and dual voltage support (288/500 VAC) suit various industrial standards. Consider the chassis mounting style and terminal block termination method during mechanical integration planning.
Part Context
This filter belongs to the FN510 series from Schaffner, specialized for output stage noise reduction. Unlike input filters, these units address high-frequency emissions generated by switching devices in inverters. The series supports various current ratings, with this model targeting the 12 A segment for medium-power industrial applications.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, verify compatibility with newer Schaffner series or equivalent third-party filters based on electrical ratings and physical dimensions.
