FN510-4-29

Overview

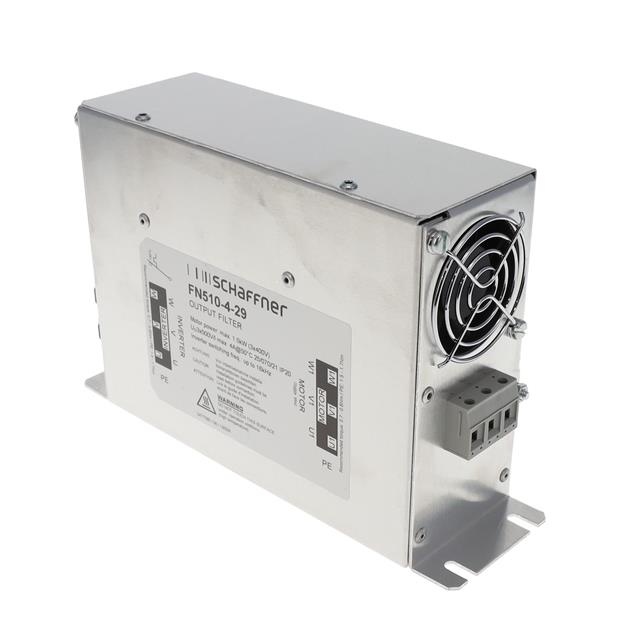

The Schaffner FN510-4-29 is a single-phase power line filter designed for inverter output applications. It features a safety terminal block output and chassis mount installation style. The component has a rated voltage of 288 VAC and 500 VAC, with a current rating of 4 A. It weighs 2.1 kg and belongs to the FN510 series under TE Connectivity / Schaffner.

Feature Summary

• Designed specifically for inverter output frequency inversion filtering
• Utilizes a safety terminal block for secure output connections
• Constructed for robust chassis mounting applications

Applications

• Inverter output filtering
• Frequency inversion systems
• Industrial power conditioning

Procurement Notes

Verify availability status as this part number is listed as discontinued by major distributors such as Mouser. Confirm if replacement components like the FN510-50-34 are suitable alternatives. Check RoHS compliance details and ensure the specific ordering suffix matches the required configuration before procurement.

Selection Notes

Select this model for low-current inverter output stages requiring 4 A capacity. Ensure the application supports chassis mounting and utilizes safety terminal blocks. Verify that the 288 VAC and 500 VAC ratings align with the system's electrical requirements and that the physical dimensions accommodate the enclosure design.

Part Context

This component is part of the FN510 series from Schaffner EMC Inc., now under TE Connectivity. The series focuses on power line filters for industrial environments. The FN510-4-29 specifically addresses single-phase inverter output needs, distinguishing itself through its terminal block output design and specific current handling capabilities within the broader product family.

Replacement Considerations

Public confirmed substitute part numbers are not explicitly documented in the provided source material. Consult manufacturer documentation for potential obsolescence replacements.
